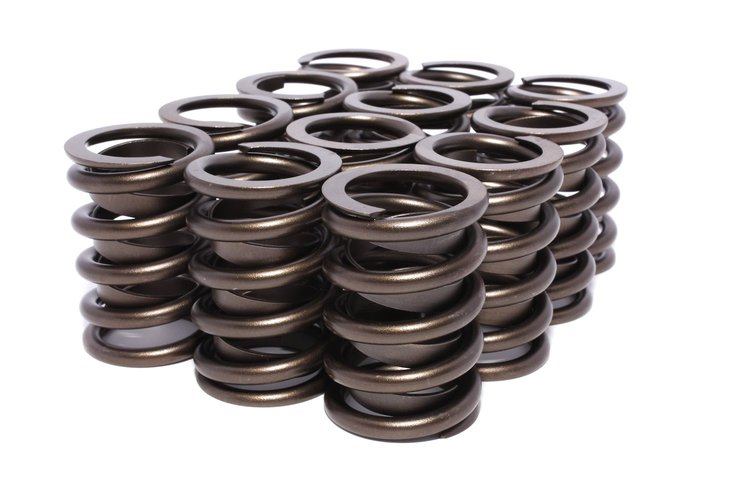

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-942-12
Single Outer Valve Springs Rate: 339 lbs
$7995
Ships on Sep 03, 2026
Lowest Price GuaranteeOuter
- Single Outer Valve Springs
- Rate: 339 lbs
- 1.027'' ID, 1.437'' OD
- Seat Load: 115 lbs at 1.700''
- Open Load: 284 lbs at 1.200''
- Coil Bind Height: 1.125''
- With Damper
- 12/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.6
Weight2.9 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.125 in (28.575 mm)
Damper Spring IncludedYes
Spring Rate339 lbs./in.
PositionOuter
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)284
Installed Pressure (Lbs.)115
QuantitySold as a set of 12
Installed Height1.7 in (43.18 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.437 in (36.5 mm)
Inside Diameter Of Outer Spring1.039 in (26.391 mm)
Inside Diameter1.039 in (26.391 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)339
Part FitmentSemi Universal
Outside Diameter1.437 in (36.5 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number942-12
Package Qty1
Package TypeEA
