Vehicle Info NeededCOMP CAMSPART NUMBER: 249-955-12

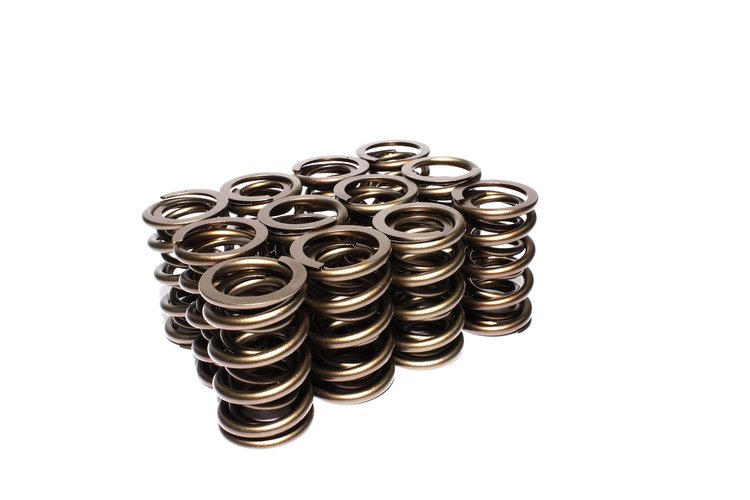

Dual Valve Springs Outer Spring O.D.: 1.565 in.
$37495
Ships on 10/15/2026
Lowest Price Guarantee1.565 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.565 in.
- Outer Spring I.D.: 1.127 in.
- Inner Spring I.D.: 0.803 in.
- Seat Load: 240lbs
- Coil Bind: 1.230 in.
- Spring Rate: 526lbs/in.
- Without damper
- Set of 12
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height3.0
Package Width3.75
Package Length13.5
Weight3.88 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.23 in (31.242 mm)
Damper Spring IncludedNo
Spring Rate526 lbs./in.
PositionN/A
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)582
Installed Pressure (Lbs.)240
QuantitySold as a set of 12
Installed Height2 in (50.8 mm)
Inside Diameter Of Inner Spring0.812 in (20.625 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Inside Diameter Of Outer Spring1.135 in (28.829 mm)
Inside Diameter0.812 in (20.625 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)526
Part FitmentSemi Universal
Outside Diameter1.55 in (39.4 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number955-12
Package Qty1
Package TypeEA
