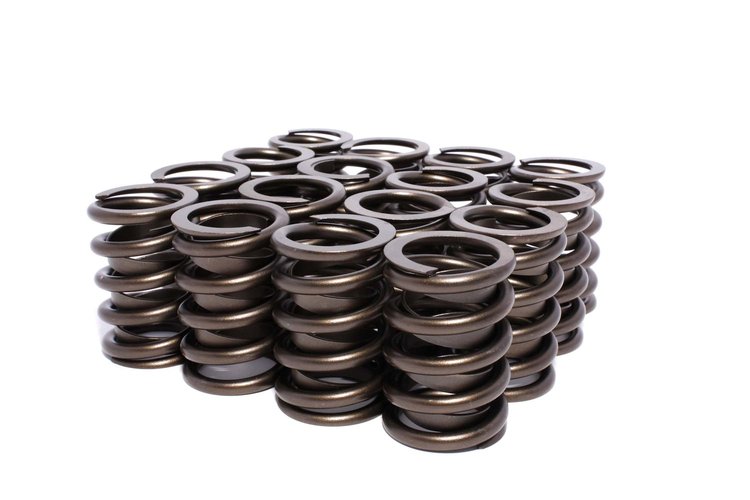

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-961-16
Single Outer Valve Springs Rate: 313 lbs
$13095
Ships on Sep 03, 2026
Lowest Price GuaranteeOuter
- Single Outer Valve Springs
- Rate: 313 lbs
- .990'' ID, 1.390'' OD
- Seat Load: 77 lbs at 1.800''
- Open Load: 234 lbs at 1.300''
- Coil Bind Height: 1.260''
- With Damper
- 16/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
- Comp Cams Valve Springs are tested under stresses much greater than normal to ensure consistency. Isolating an engine's purpose is first when selecting proper springs. Verify load capacity for optimal performance.
Part TypeValve Spring Kit
Product LineComp Cams Single Valve Springs
BrandCOMP CAMS
Package Height3.0
Package Width3.7
Package Length13.6
Weight3.95 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.2 in (30.48 mm)
Damper Spring IncludedYes
Spring Rate313 lbs./in.
PositionOuter
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)238
Installed Pressure (Lbs.)78
QuantitySold as a set of 16
Installed Height1.8 in (45.72 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.39 in (35.3 mm)
Inside Diameter Of Outer Spring0.99 in (25.146 mm)
Inside Diameter1.032 in (26.213 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)321
Outside Diameter1.4 in (35.6 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number961-16
Package Qty1
Package TypeEA
