Vehicle Info NeededBeehive Valve Spring Kit w/ Titanium Retainer Universal
Ships on 10/13/2026
Lowest Price Guarantee- Beehive Valve Spring Kit w/ Titanium Retainer
- Universal
- 1.445" Single Spring

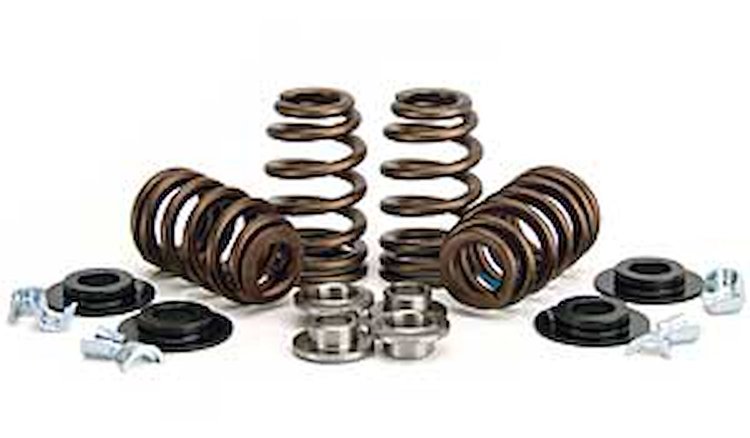

Kit includes: 249-26120-4 Beehive Valve Spring, 249-794-4 Titanium Retainer; 249-4696-4 Spring Seat 1.550 O.D., .585 I.D., .060 Thick; 249-618-4 10° .310 Super Lock w/ Lash Cap Recess
Specs - OD: Top 1.095" Bottom 1.445"
- ID: Top .650" Bottom 1.00"
- Seat Pressure: 155 lbs @ 1.880'
- Open Pressure: 166 lbs @ 1.850'
- Coil Bind: 1.230"
- Spring Rate: 370 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
This Harley Big Twin Evo Spring Kit comes with Spring Seats, Beehive Valve Springs, Titanium Retainers and our 7 Degree Steel Valve Locks.
Advanced Beehive Valve Spring Technology
Comp Cams Beehive Valve Springs are revolutionizing performance street/strip applications! These valve springs deliver increased valve train stability while offering a reduction in weight. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and the retainer. Using Comp Spintron testing equipment, the Beehive spring was engineered to maximize "harmonic resistance" through reduced mass and unique coil spacing.
Show More
With highly reduced internal spring harmonics, engines equipped with these state-of-the-art Beehive valve springs rev higher and live longer as compared with other "performance" springs. For street/strip applications, these valve springs are the best choice possible. Because of the unique Beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain durability for street driving.
