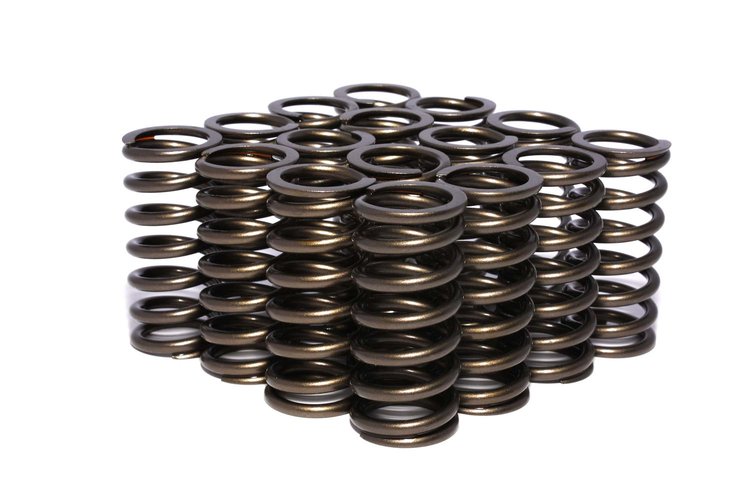

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-973-16
Single Inner Valve Springs Rate: 134 lbs
$7195
2 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeInner
- Single Inner Valve Springs
- Rate: 134 lbs
- .700'' ID, .970'' OD
- Seat Load: 46 lbs at 1.750''
- Open Load: 126 lbs at 1.150''
- Coil Bind Height: 1.040''
- 16/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.3
Package Width3.0
Package Length10.4
Weight1.25 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.07 in (27.178 mm)
Damper Spring IncludedNo
Spring Rate134 lbs./in.
PositionInner
Open Height1.15 in (29.2 mm)
Open Pressure (Lbs.)126
Installed Pressure (Lbs.)46
QuantitySold as a set of 16
Installed Height1.75 in (44.45 mm)
Inside Diameter Of Inner Spring0.7 in (17.78 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring0.97 in (24.6 mm)
Inside Diameter0.7 in (17.78 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)133
Part FitmentSemi Universal
Outside Diameter0.97 in (24.6 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number973-16
Package Qty1
Package TypeEA
