Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

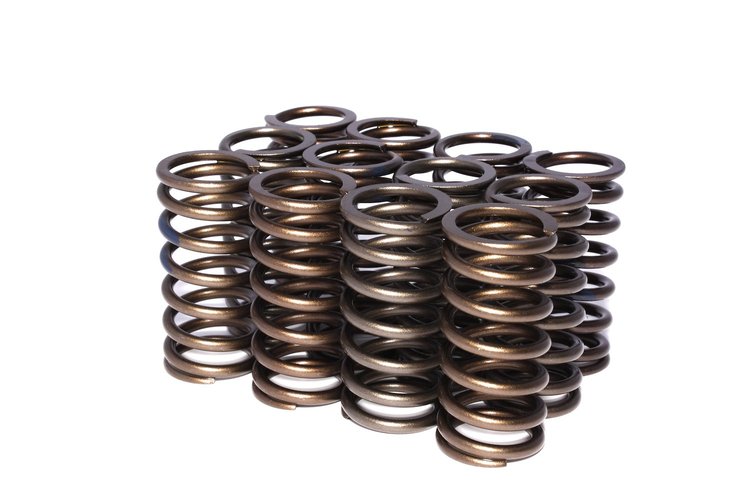

Inner
- Single Inner Valve Springs
- Rate: 96 lbs
- .697'' ID, .937'' OD
- Seat Load: 27 lbs at 1.650''
- Open Load: 70 lbs at 1.200''
- Coil Bind Height: .920''
- 12/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
- Comp Cams Valve Springs are tested under stresses much greater than normal to ensure consistency. Isolating an engine's purpose is first when selecting proper springs. Verify load capacity for optimal performance.
Part TypeValve Spring Kit
Product LineComp Cams Single Valve Springs
BrandCOMP CAMS
Package Height2.25
Package Width3.0
Package Length10.25
Weight1.35 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height0.92 in (23.368 mm)
Damper Spring IncludedNo
Spring Rate96 lbs./in.
PositionInner
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)75
Installed Pressure (Lbs.)32
QuantitySold as a set of 12
Installed Height1.65 in (41.91 mm)
Inside Diameter Of Inner Spring0.697 in (17.704 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring0.937 in (23.8 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)96
Part FitmentSemi Universal
Outside Diameter0.937 in (23.8 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number974-12
Package Qty1
Package TypeEA
