Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

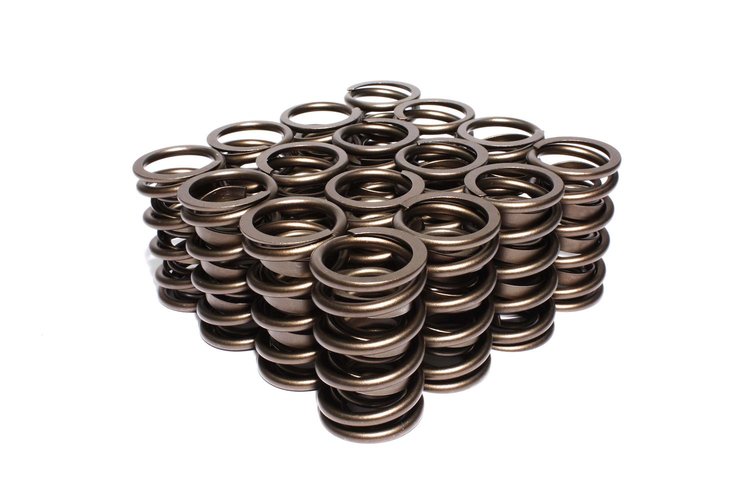

1.460 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.460 in.
- Outer Spring I.D.: 1.060 in.
- Inner Spring I.D.: 0.697 in.
- Seat Load: 127lbs
- Coil Bind: 1.195 in.
- Spring Rate: 403lbs/in.
- With damper
- Set of 16
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.8
Package Length13.6
Weight5.05 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.195 in (30.353 mm)
Damper Spring IncludedYes
Spring Rate403 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)368
Installed Pressure (Lbs.)126
QuantitySold as a set of 16
Installed Height1.85 in (46.99 mm)
Inside Diameter Of Inner Spring0.697 in (17.704 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Inside Diameter Of Outer Spring1.06 in (26.924 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)403
Part FitmentSemi Universal
Outside Diameter1.46 in (37.1 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number978-16
Package Qty1
Package TypeEA
