Product Discontinued

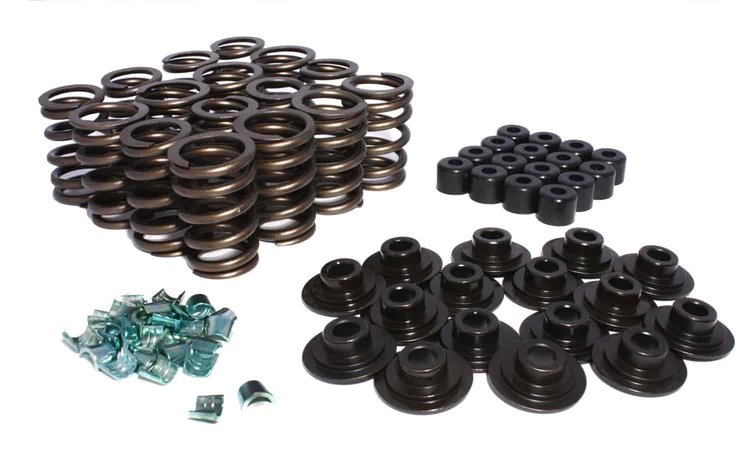

COMP CAMSPART NUMBER: 249-982-KIT
Conical Valve Spring Kit Includes: Valve Springs #249-982-16
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Items You Need
![Valve Spring Compressor [Stud Mount]](https://www.jegs.com/images/mini_200/500/555/555-80518.jpg)
![Valve Spring Compressor [Stud Mount]](https://www.jegs.com/images/mini_200/500/555/555-80521.jpg)
Conical Valve Springs
- Conical Valve Spring Kit
- Valve Springs #249-982-16
- 7° Steel Retainers #249-743-16
- 11/32" Valve Locks #249-601-16
- 11/32" Umbrella Valve Seals #249-502-16
Includes:
High-Performance Conical Valve Springs
Comp Cams Conical Valve Springs are designed with a progressive pitch-driven natural frequency that increases valve train RPM limits while reducing resonance concerns and decreasing dynamic spring oscillations. This results in longer spring life and the ability to run a more aggressive camshaft.
Part TypeValve Spring Kit
Product LineComp Cams Conical Valve Springs
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.6
Weight4.45 PG
Part CategoryPerformance Parts
CoatedNo
Installed Pressure (Lbs.)100
Locks IncludedYes
Installed Height1.75 in (44.45 mm)
Inside Diameter Of Inner Spring0.886 in (22.504 mm)
Retainers IncludedYes
Lock Style7 degree
Inside Diameter0.866 in (21.996 mm)
Spring TypeSingle
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Coil Bind Height1.135 in (28.829 mm)
Damper Spring IncludedNo
Spring Rate362 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Lock Groove Quantity1-groove
Open Pressure (Lbs.)281
QuantitySold as a kit
Valve Spring StyleConical
Outside Diameter Of Outer Spring1.454 in (36.9 mm)
Inside Diameter Of Outer Spring1.07 in (27.178 mm)
Lock MaterialSteel
Spring Rate (Lbs./In.)362
Outside Diameter1.25 in (31.8 mm)
Retainer MaterialSteel
Vendor Part Number982-KIT
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
