Vehicle Info NeededCOMP CAMSPART NUMBER: 249-983-16

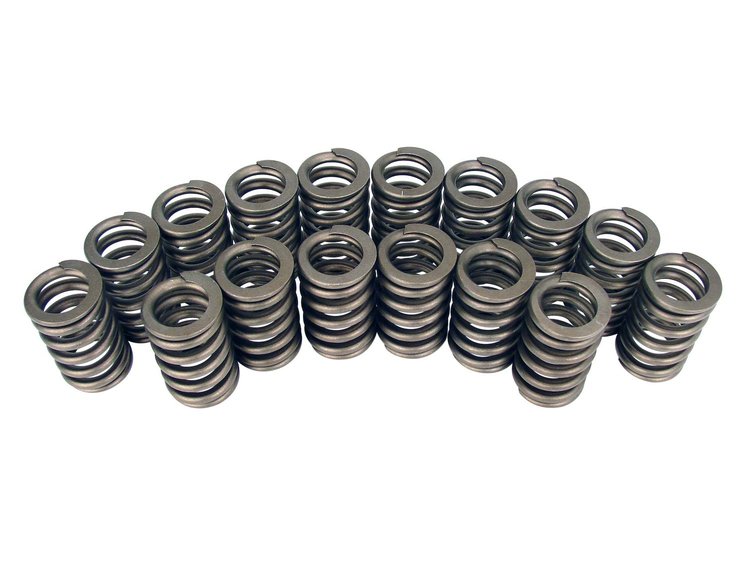

Ovate Wire Single Valve Springs O.D.: 1.26"
$11595
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeOvate Wire Single Valve Springs
- Ovate Wire Single Valve Springs
- O.D.: 1.26"
- I.D.: .836"
- Seat Load: 105 lbs/in @ 1.700
- Open Load: 310 lbs/in @ 1.200
- Coil Bind: 1.150"
- Rate: 410 lbs/in.
- 16/pkg.
I.D. .836' Seat Load 105 @ 1.700 Open Load 310 @ 1.200 Coil Bind 1.150 Rate(lbs/in) 410 Titanium Retainer 249-732,249-721-16 Steel Retainer 249-751-16 Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
- Comp Cams engineers have developed a streetable line of Ovate(made from oval shaped wire, as opposed to round) valve springs. Ovate springs have more material occupying the same vertical area (installed height) than round springs, so several major benefits are realized. If coil bind is an issue, you can now have a higher rate spring with more clearance. If reliability is a concern, the Ovate springs have been proven to last longer in identical applications.
Part TypeValve Spring Kit
Product LineComp Cams Ovate Wire Valve Springs
BrandCOMP CAMS
Package Height2.3
Package Width3.05
Package Length10.25
Weight3.175 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.15 in (29.21 mm)
Damper Spring IncludedNo
Spring Rate410 lbs./in.
PositionN/A
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)310
Installed Pressure (Lbs.)105
QuantitySold as a set of 16
Installed Height1.7 in (43.18 mm)
Valve Spring StyleOvate wire
Outside Diameter Of Outer Spring1.25 in (31.8 mm)
Inside Diameter Of Outer Spring0.836 in (21.234 mm)
Inside Diameter0.836 in (21.234 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)410
Outside Diameter1.26 in (32 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number983-16
Package Qty1
Package TypeEA
