Vehicle Info NeededCOMP CAMSPART NUMBER: 249-984-12

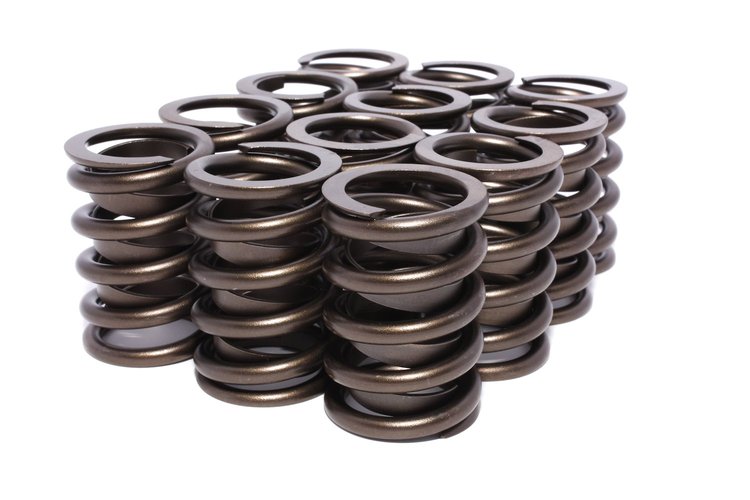

Single Outer Valve Springs Rate: 231 lbs
$7995
Ships on Sep 03, 2026
Lowest Price GuaranteeOuter
- Single Outer Valve Springs
- Rate: 231 lbs
- 1.070'' ID, 1.430'' OD
- Seat Load: 105 lbs at 1.750''
- Open Load: 215 lbs at 1.250''
- Coil Bind Height: 1.150''
- With Damper
- 12/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.6
Weight2.75 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.15 in (29.21 mm)
Damper Spring IncludedYes
Spring Rate231 lbs./in.
PositionOuter
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)220
Installed Pressure (Lbs.)105
QuantitySold as a set of 12
Installed Height1.75 in (44.45 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Inside Diameter Of Outer Spring1.07 in (27.178 mm)
Inside Diameter1.07 in (27.178 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)231
Part FitmentSemi Universal
Outside Diameter1.43 in (36.3 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number984-12
Package Qty1
Package TypeEA
