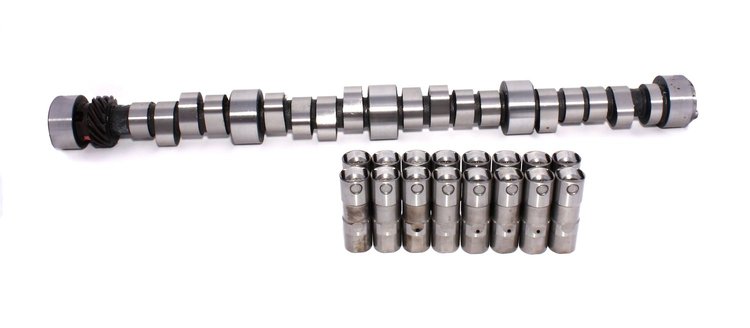

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-CL01-421-8

Comp Cams Xtreme Energy Hydraulic Roller Camshafts

$85795
ShippingShips on 10/19/2026
Lowest PriceLowest Price Guarantee

Chevrolet Gen VI Big Block 454ci & 502 c.i. 8 CYL. 1996-1999
    Xtreme Energy XR288HR Hydraulic Roller Camshaft & Lifter Kit
    Lift: .521"/.540"
    Duration: 288/294
    Lobe Separation Angle: 110°
    RPM Range: 2500-6000

  • Produces Better Throttle Response
  • Produces Top Engine Horsepower
  • Delivers Increased Engine Vacuum
  • 1 Year Limited Warranty

    Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572


    Street/strip applications with 10:1+ compression and 2800+ stall. Rough idle, needs good intake and headers.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width6.5
Package Length26.0
Weight14.5 PG
Part CategoryPerformance Parts
UsageStreet/Performance
Intake Valve Lift0.521 in (13.233 mm)
Int. Duration Advertised (Deg)288
Exh. Duration @ .050 In. (Deg)242
Rpm Range2500-6000
Lifter TypeHydraulic Roller
Exh. Duration Advertised (Deg)294
Engine Make/SizeChevy Big Block (396-502)
Int. Duration @ .050 In. (Deg)236
Exhaust Valve Lift0.54 in (13.716 mm)
Vendor Part NumberCL01-421-8
Package Qty1
Package TypeEA
No Questions
No Reviews
