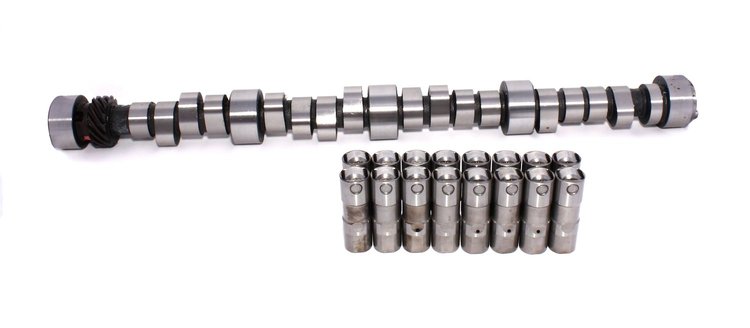

Xtreme Marine XM284HR Hydraulic Roller Camshaft & Lifter Kit Lift: .547"/.547" Duration: 284°/290° RPM Range: 2200-5800
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-CL01-451-8

Xtreme Marine XM284HR Hydraulic Roller Camshaft & Lifter Kit Lift: .547"/.547" Duration: 284°/290° RPM Range: 2200-5800

$85795
ShippingShips on 10/23/2026
Lowest PriceLowest Price Guarantee

Chevrolet Gen VI 454 & 502 c.i. 8 CYL. 1996-1999
    Xtreme Marine XM284HR Hydraulic Roller Camshaft & Lifter Kit
    Lift: .547"/.547"
    Duration: 284°/290°
    RPM Range: 2200-5800

  • Xtreme Marine Camshaft
  • 1 Year Limited Warranty

    Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572


    Good for jet boat with A impeller. Great for pleasure or mild performance use.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width5.7
Package Length25.4
Weight16.05 PG
Part CategoryPerformance Parts
UsageOEM
Intake Valve Lift0.547 in (13.894 mm)
Int. Duration Advertised (Deg)284
Exh. Duration @ .050 In. (Deg)236
Rpm Range2200-5800
Lifter TypeHydraulic Roller
Exh. Duration Advertised (Deg)290
Part FitmentSemi Universal
Engine Make/SizeChevy Gen VI 454
Int. Duration @ .050 In. (Deg)230
Exhaust Valve Lift0.547 in (13.894 mm)
Vendor Part NumberCL01-451-8
Package Qty1
Package TypeEA
