Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL10-210-4

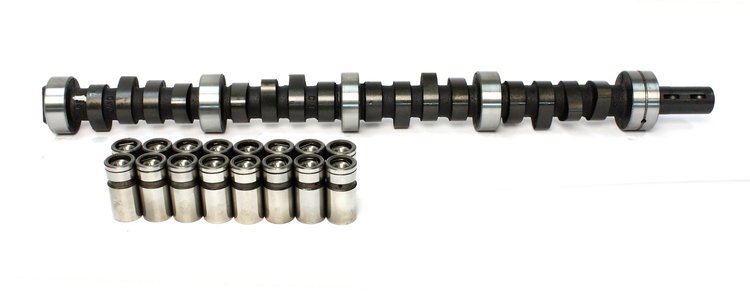

Magnum 292H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift: .518" /.518" Duration: 292°/292° RPM Range: 2500-6500
$39795
Ships on 10/23/2026
Lowest Price GuaranteeAmerican Motors 290-401ci 1966-1991
- Magnum 292H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .518''/.518"
Duration: 292°/292°
RPM Range: 2500-6500
Hydraulic-Street / Strip cam for 360and up. Use 10:1 compression with 3000+converter and low gears. Very rough idle.
| Operating Range: | 2500-6500 RPM |
| Duration Advertised: | 292° Intake / 292° Exhaust |
| Duration @ .050' Lift: | 244° Intake / 244° Exhaust |
| Valve Lift w/1.7 Rockers: | .518' Intake / .518' Exhaust |
| Lobe Separation Angle: | 110° |
AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin
Street/strip cam for 360 and up. Use 10:1 compression with 3000+ converter and low gears. Very rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.3
Package Width5.6
Package Length25.4
Weight14.61 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind Number292H
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeAMC 290-401
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.518
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.518 in (13.157 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.518
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.518 int./0.518 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.518 in (13.157 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL10-210-4
Package Qty1
Package TypeEA
