Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy 262-400ci 1955-1987

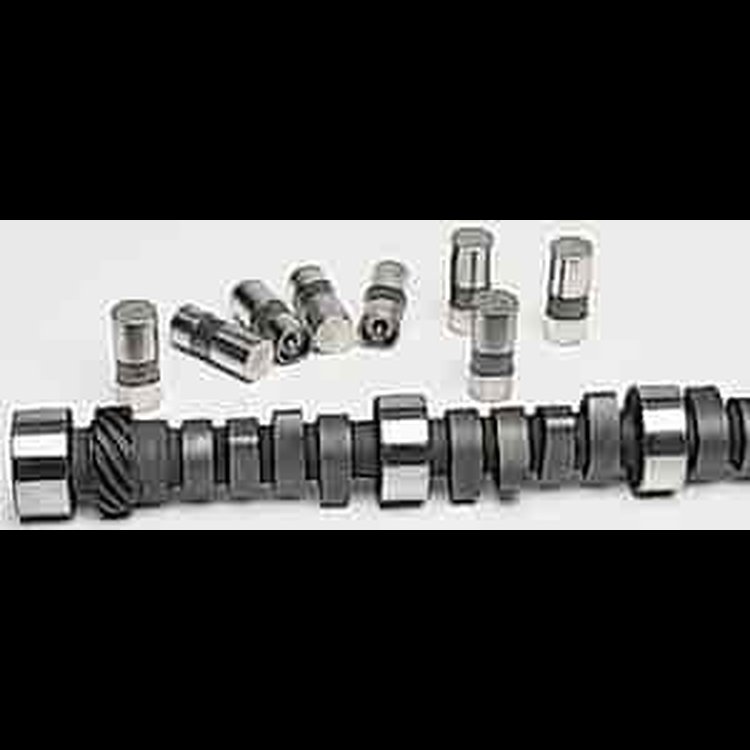

- PURE Energy Hydraulic Flat Tappet Cam and Lifter Kit
- 50 State Legal
- Performance Upgrade
- 1 Year Limited Warranty
- Limited Warranty
Small Block Chevy 262-400ci 1955-87
Lift: .429"/.438"
Duration: 246°/263°
Lobe Separation Angle: 110°
RPM Range: 1200-5200
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width6.0
Package Length25.3
Weight13.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic flat tappet
Grind Number246PE
Exh. Duration Advertised (Deg)263
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.429
Int. Duration @ .050 In. (Deg)203
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,200-5,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.429 in (10.897 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)246
Lobe Separation (Deg)110
Rpm Range1200-5200
Lifter StyleHydraulic flat tappet
Advertised Duration246 int./263 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.438
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.429 int./0.438 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.438 in (11.125 mm)
Advertised Intake Duration246
Intake Duration At 050 Inch Lift203
Exhaust Duration At 050 Inch Lift212
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration263
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift203 int./212 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL12-305-2
Package Qty1
Package TypeEA
