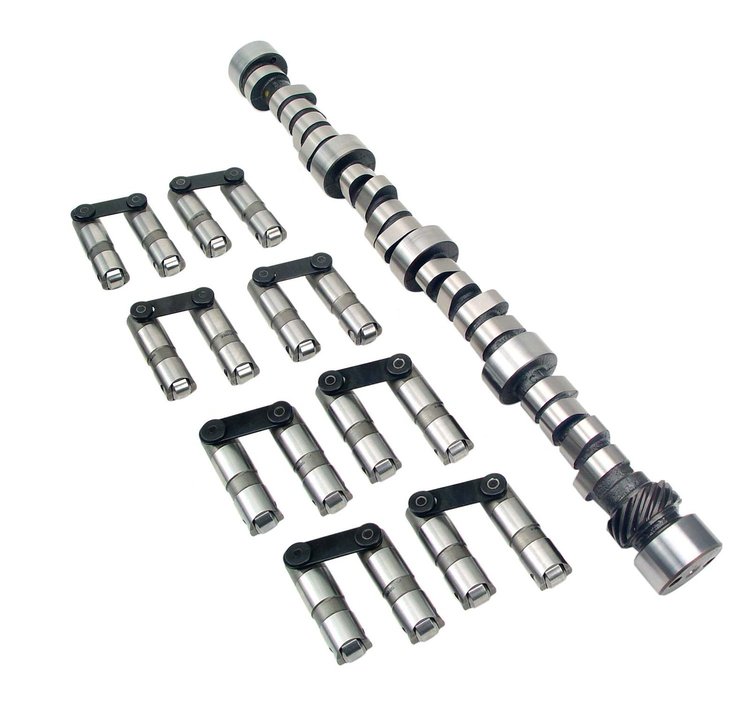

Magnum Hydraulic Roller Camshaft and Lifter Kit Chevy Small Block 262-400 Retro Fit Lift: .525"/.525"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-CL12-430-8

Magnum Hydraulic Roller Camshaft and Lifter Kit Chevy Small Block 262-400 Retro Fit Lift: .525"/.525"

$1,21095
ShippingShips on 10/23/2026
Lowest PriceLowest Price Guarantee

Chevrolet Small Block 262-400ci 1958-1998
  • Retro-Fit for Non Factory Roller
    • Magnum Hydraulic Roller Camshaft and Lifter Kit
      Chevy Small Block 262-400 Retro Fit
    • Lift: .525"/.525"
    • Duration: 280°/280°
    • Lobe Separation Angle: 110°
    • RPM Range: 2000-5500

    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


      Limited high performance street. Aftermarket intake, headers, 2200+ stall, and 3.40 to 410 gears. Mild rough idle.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft Kit
    BrandCOMP CAMS
    Package Height3.4
    Package Width8.7
    Package Length25.3
    Weight15.65 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)224
    Cam StyleHydraulic roller tappet
    Grind NumberCS 280H-R10
    Exh. Duration Advertised (Deg)280
    Locks IncludedNo
    Engine Make/SizeChevy Small Block (262-400)
    Retainers IncludedNo
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
    Int. Duration @ .050 In. (Deg)224
    Assembly Lubricant IncludedNo
    Basic Operating Rpm Range2,000-5,500
    Pushrods IncludedNo
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Intake Valve Lift0.525 in (13.335 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)280
    Lobe Separation (Deg)110
    Rpm Range2000-5500
    Lifter StyleHydraulic roller
    Advertised Duration280 int./280 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
    Valve Springs IncludedNo
    UsageStreet/Performance
    Valve Lift With Factory Rocker Arm Ratio0.525 int./0.525 exh.
    QuantitySold as a kit
    Valve Stem Seals IncludedNo
    Exhaust Valve Lift0.525 in (13.335 mm)
    Advertised Intake Duration280
    Intake Duration At 050 Inch Lift224
    Exhaust Duration At 050 Inch Lift224
    Timing Chain And Gears IncludedNo
    Advertised Exhaust Duration280
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Duration At 050 Inch Lift224 int./224 exh.
    Valve Springs RequiredYes
    Lifters IncludedYes
    Vendor Part NumberCL12-430-8
    Package Qty1
    Package TypeEA
