Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL20-243-4

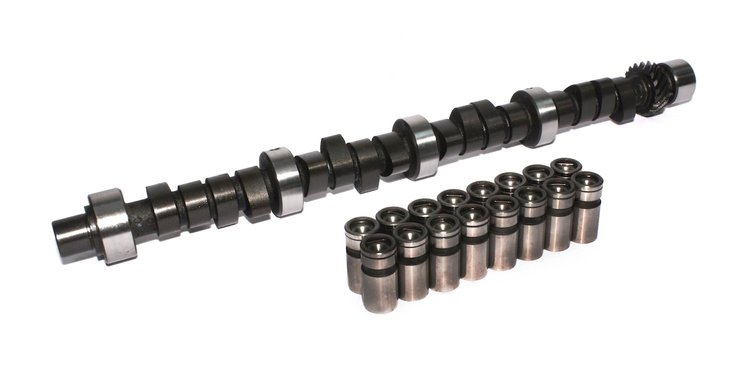

Magnum 292H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift .501"/.501" Duration 292°/292° RPM Range 3000-6500
$39795
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2000
- Magnum 292H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift .501"/.501"
Duration 292°/292°
RPM Range 3000-6500
Hydraulic-Serious Street / Strip effort.9.5:1 to 10.5:1 comp. Aftermarket manifold, headers & 3.91 gear. 3000-3500 stall in automatic cars.
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Serious street/strip effort. 9.5:1 to 10.5:1 compression. Aftermarket manifold, headers and 3.91 gear. 3000-3500 stall in automatic cars.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.1
Package Width5.6
Package Length25.4
Weight14.15 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind Number292H
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeMopar 318-360
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.501
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.501 in (12.725 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range3000-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.501
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.501 int./0.501 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.501 in (12.725 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL20-243-4
Package Qty1
Package TypeEA
