Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL20-249-4

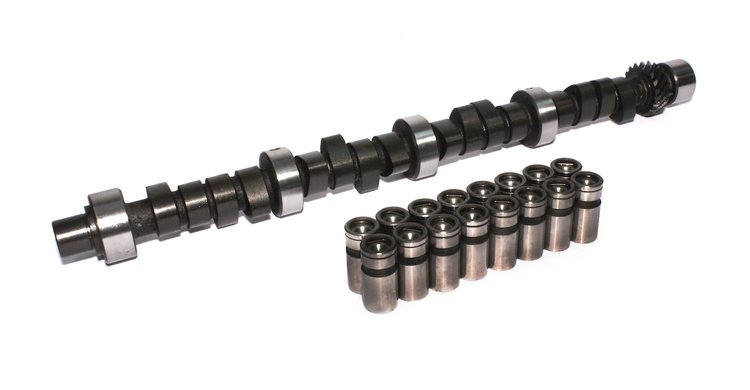

Comp Cams 'Magnum' Mechanical Flat Tappet Camshafts
$45695
Ships on 09/09/2026
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2000
- Magnum 306S Mechanical Flat Tappet Camshaft & Lifter Kit
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Max effort bracket racing or Pro Street. 10:1-11:1 compression with 4000 to 4500 stall and 4.30-4.88 gear.
Lift: .555"/.555"
Duration: 306°/306°
Lobe Separation Angle: 110°
RPM Range: 4000-7000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.1
Package Width5.6
Package Length25.4
Weight14.4 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleMechanical flat tappet
Grind Number306S
Exh. Duration Advertised (Deg)306
Locks IncludedNo
Engine Make/SizeMopar 318-360
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.555
Int. Duration @ .050 In. (Deg)260
Assembly Lubricant IncludedYes
Basic Operating Rpm Range4,000-7,000
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.022 in (0.559 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.555 in (14.097 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)306
Lobe Separation (Deg)110
Rpm Range4000-7000
Lifter StyleMechanical flat tappet
Advertised Duration306 int./306 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.555
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.555 int./0.555 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.555 in (14.097 mm)
Advertised Intake Duration306
Intake Duration At 050 Inch Lift260
Exhaust Duration At 050 Inch Lift260
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration306
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift260 int./260 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL20-249-4
Package Qty1
Package TypeEA
