Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL21-225-4

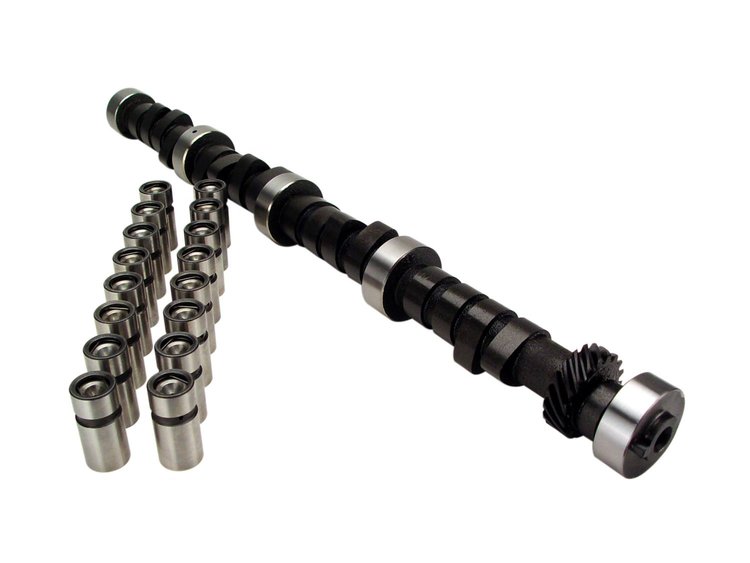

Xtreme Energy 284H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift: .507" /.510" Duration: 284°/296° RPM Range: 2300-6500
$39795
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeChrysler 383-440ci Big Block 1959-80
Single Bolt Gear
Single Bolt Gear
- Xtreme Energy 284H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .507''/.510''
Duration: 284°/296°
RPM Range: 2300-6500
Street/Strip, needs 2800+ stall converter, 9:1 compression, rough idle.
| Operating Range: | 2300-6500 RPM |
| Duration Advertised: | 284° Intake / 296° Exhaust |
| Duration @ .050' Lift: | 240° Intake / 246° Exhaust |
| Valve Lift w/1.5 Rockers: | .507' Intake / .510' Exhaust |
| Lobe Separation Angle: | 110° |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Street/strip, needs 2800+ stall, 9:1 compression, rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.5
Package Width5.5
Package Length25.5
Weight14.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic flat tappet
Grind NumberCRB XE284H-10
Exh. Duration Advertised (Deg)296
Locks IncludedNo
Engine Make/SizeMopar 361-400
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.507
Int. Duration @ .050 In. (Deg)240
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,300-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.507 in (12.878 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)284
Lobe Separation (Deg)110
Rpm Range2300-6500
Lifter StyleHydraulic flat tappet
Advertised Duration284 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.507 int./0.510 exh.
Camshaft Gear Attachment1-bolt
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration284
Intake Duration At 050 Inch Lift240
Exhaust Duration At 050 Inch Lift246
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration296
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift240 int./246 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL21-225-4
Package Qty1
Package TypeEA
