Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL23-700-9

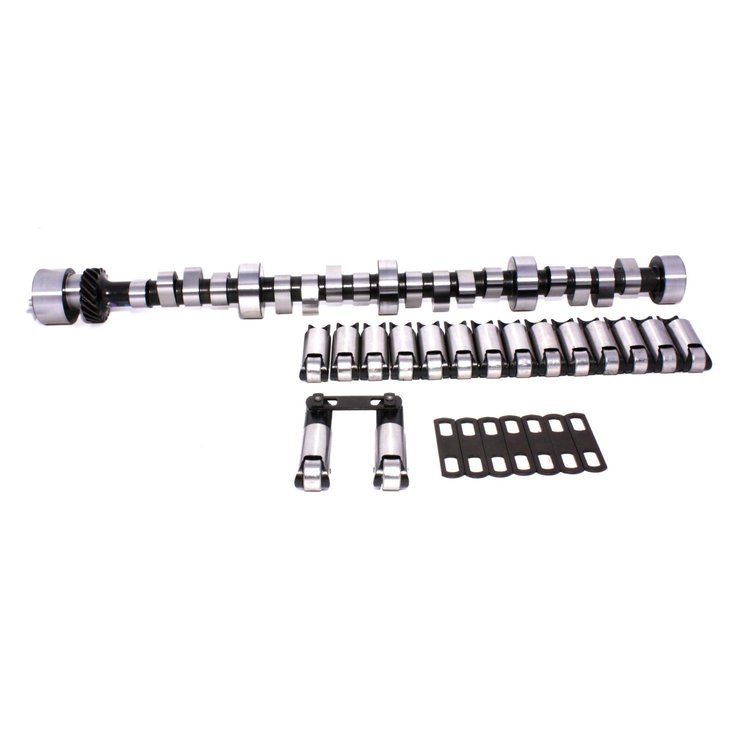

Xtreme Energy Mechanical Roller Camshaft and Lifter Kit Chrysler 383-440ci 1959-1980 Three Bolt Lift: .552"/.564"
$1,28595
Ships on 10/23/2026
Lowest Price GuaranteeChrysler 383-440 C.I. 8 CYL. 1959-1980
- Xtreme Energy Mechanical Roller Camshaft and Lifter Kit
- Lift: .552"/.564"
- Duration: 274°/280°
- Lobe Separation Angle: 110°
- RPM Range: 2000-6000
Mechanical Roller-Best all around street roller 9.5:1 compression with 2500+ stall.273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Best all around street roller. 9.5:1 compression with 2500+ stall.
Chrysler 383-440ci 1959-1980 Three Bolt
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width8.7
Package Length25.5
Weight15.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)242
Cam StyleMechanical roller tappet
Grind NumberXR274R
Exh. Duration Advertised (Deg)280
Locks IncludedNo
Engine Make/SizeMopar 361-400
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.564
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.016 in (0.406 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.564 in (14.326 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)110
Rpm Range2000-6000
Lifter StyleMechanical roller
Advertised Duration274 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.57
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.564 int./0.570 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.57 in (14.478 mm)
Advertised Intake Duration274
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift242
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration280
Lifter TypeMechanical Roller
Duration At 050 Inch Lift236 int./242 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL23-700-9
Package Qty1
Package TypeEA
