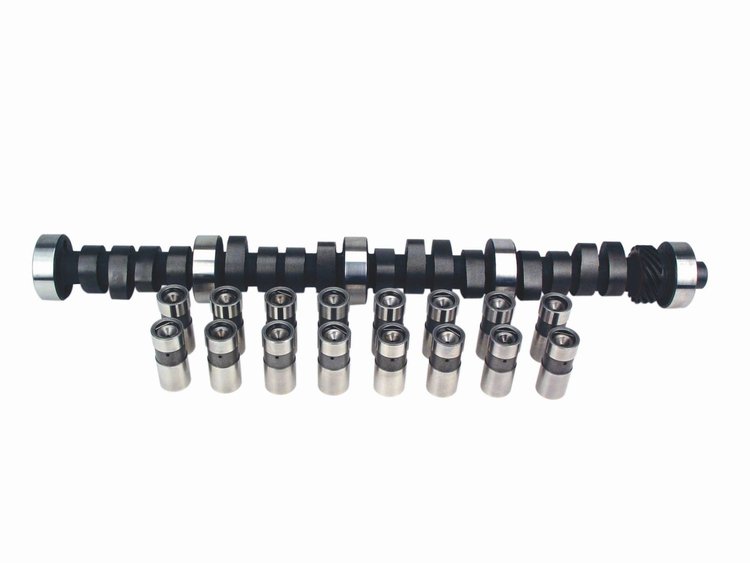

Xtreme Energy 284H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .541''/.544''
Duration: 284°/296°
RPM Range: 2300-6500


*Note: Firing Order 1-5-4-2-6-3-7-8

Street/Strip, 2800+ stall converter, headers, gears, has rough idle.

Operating Range:	2300-6500 RPM
Duration Advertised:	284° Intake / 296° Exhaust
Duration @ .050' Lift:	240° Intake / 246° Exhaust
Valve Lift w/1.6 Rockers:	.541' Intake / .544' Exhaust
Lobe Separation Angle:	110°

Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


Street/strip, 2800+ stall, headers, gears, rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
