Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL31-335-4

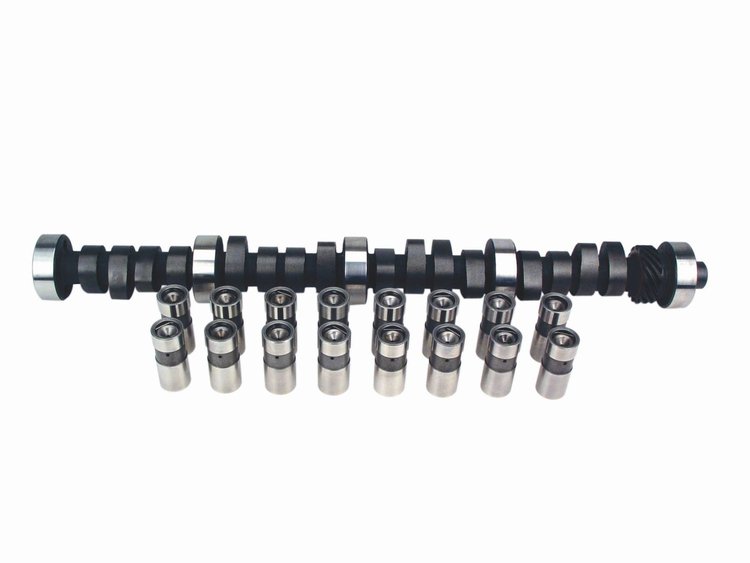

Comp Cams Magnum Mechanical Flat Tappet Camshafts
$45695
Ships on 10/19/2026
Lowest Price GuaranteeFord 289-302 ci. 8cyl. 1963-95
- Magnum 294S Mechanical Flat Tappet Camshaft & Lifter Kit
Lift: .560"/.560"
Duration: 294°/294°
Lobe Separation Angle: 110°
RPM Range: 2500-6500
Good power for street/Strip, very rough idle. Needs 3500+ stall, likes headers, Intake, low gears, and 10-1 compression.
| Operating Range: | 2500-6500 RPM |
| Duration Advertised: | 294° Intake / 294° Exhaust |
| Duration @ .050' Lift: | 248° Intake / 248° Exhaust |
| Valve Lift w/1.6 Rockers: | .560' Intake / .560' Exhaust |
| Valve Setting: | .022' Intake / .022' Exhaust |
| Lobe Separation Angle: | 110° |
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Great for street/strip. 4 speed or automatic with 3500+ stall. Intake, headers, low gears, very rough idle, 10:1 compression.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.1
Package Width5.5
Package Length25.4
Weight13.38 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleMechanical flat tappet
Grind Number294S
Exh. Duration Advertised (Deg)294
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)248
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.022 in (0.559 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleMechanical flat tappet
Advertised Duration294 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.560 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.56 in (14.224 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift248
Exhaust Duration At 050 Inch Lift248
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration294
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift248 int./248 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL31-335-4
Package Qty1
Package TypeEA
