Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL31-414-3

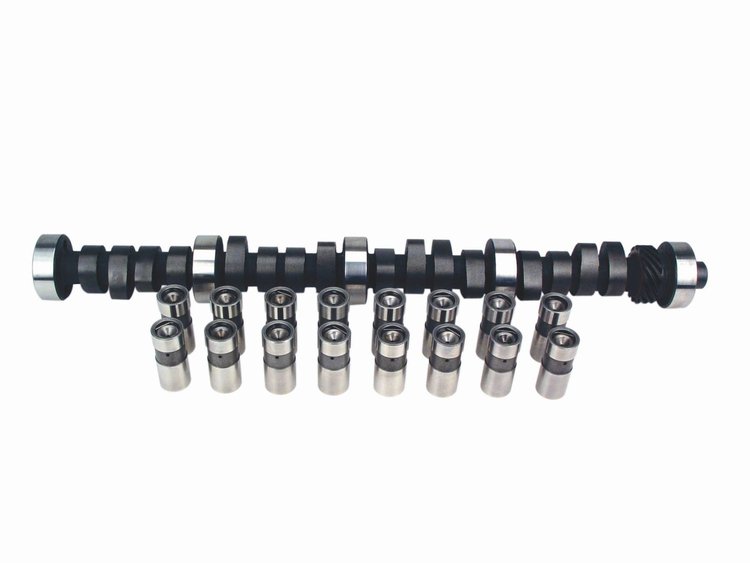

Magnum 270H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift: .500" /.500" Duration: 270°/270° RPM Range: 1800-5800
$38695
2 left in stock
Ships Today
Lowest Price GuaranteeFord 289-302 C.I. 8 cyl. 1963-1995
- Magnum 270H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .500''/.500"
Duration: 270°/270°
RPM Range: 1800-5800
*Note: Firing Order 1-5-4-2-6-3-7-8
Performance use. Best with mild converter, headers, 9:1 compression, and lower gears. Rough idle.
| Operating Range: | 1800-5800 RPM |
| Duration Advertised: | 270° Intake / 270° Exhaust |
| Duration @ .050' Lift: | 224° Intake / 224° Exhaust |
| Valve Lift w/1.6 Rockers: | .500' Intake / .500' Exhaust |
| Lobe Separation Angle: | 110° |
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Performance use. Best with mild converter, headers, 9:1 compression and lower gears. Rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.1
Package Width5.5
Package Length25.3
Weight14.2 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberFS 270H-10
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,800-5,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.5 in (12.7 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)110
Rpm Range1800-5800
Lifter StyleHydraulic flat tappet
Advertised Duration270 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL31-414-3
Package Qty1
Package TypeEA
