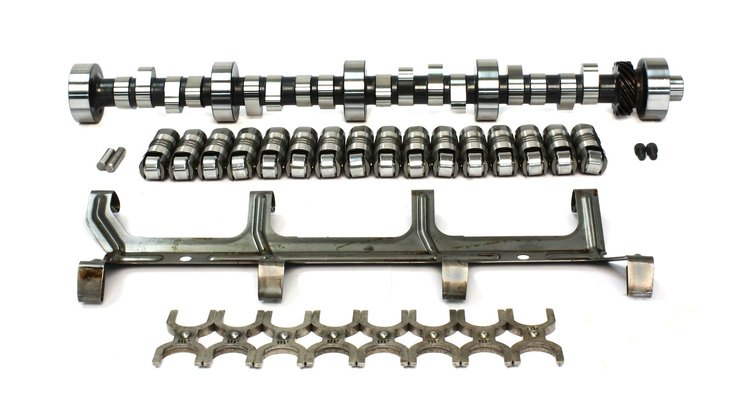

Magnum Hydraulic Roller Camshaft and Lifter Kit Ford 289-302 1963-95 Retro-Fit Lift: .512"/.512"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-CL31-432-8

Magnum Hydraulic Roller Camshaft and Lifter Kit Ford 289-302 1963-95 Retro-Fit Lift: .512"/.512"

$86795
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

Ford 289-302ci 1963-1995
  • Retro-Fit Non-EFI
    • Magnum Hydraulic Roller Camshaft and Lifter Kit
      Ford 289-302 1963-95 Retro-Fit
    • Lift: .512"/.512"
    • Duration: 281°/281°
    • Lobe Separation Angle: 110°
    • RPM Range: 2000-5500

    • For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


      Great for street machines. Best power increase above 3500 RPM, good torque, mild idle.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft Kit
    BrandCOMP CAMS
    Package Height5.1
    Package Width10.4
    Package Length25.4
    Weight14.5 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)220
    Cam StyleHydraulic roller tappet
    Grind Number281HR
    Exh. Duration Advertised (Deg)281
    Locks IncludedNo
    Engine Make/SizeFord 221-302
    Retainers IncludedNo
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.512
    Int. Duration @ .050 In. (Deg)220
    Assembly Lubricant IncludedNo
    Basic Operating Rpm Range2,000-5,500
    Pushrods IncludedNo
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Intake Valve Lift0.512 in (13.005 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)281
    Lobe Separation (Deg)110
    Rpm Range2000-5000
    Lifter StyleHydraulic roller
    Advertised Duration281 int./281 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.512
    Valve Springs IncludedNo
    UsageStreet/Performance
    Valve Lift With Factory Rocker Arm Ratio0.512 int./0.512 exh.
    QuantitySold as a kit
    Valve Stem Seals IncludedNo
    Exhaust Valve Lift0.512 in (13.005 mm)
    Advertised Intake Duration281
    Intake Duration At 050 Inch Lift220
    Exhaust Duration At 050 Inch Lift220
    Timing Chain And Gears IncludedNo
    Advertised Exhaust Duration281
    Lifter TypeHydraulic Roller
    Duration At 050 Inch Lift220 int./220 exh.
    Valve Springs RequiredYes
    Lifters IncludedYes
    Vendor Part NumberCL31-432-8
    Package Qty1
    Package TypeEA
