Product Discontinued
COMP CAMSPART NUMBER: 249-CL31-452-8

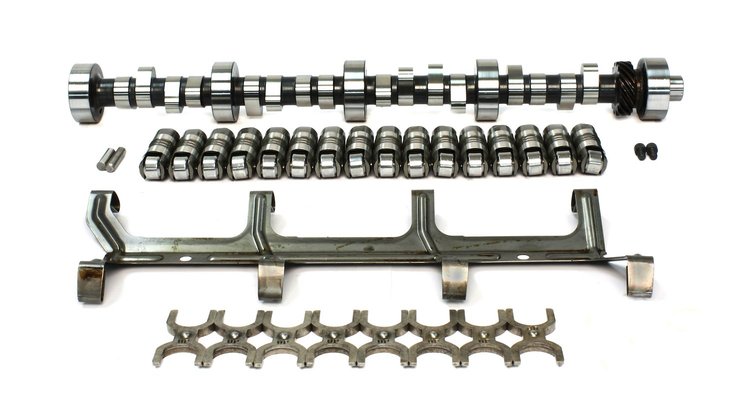

Magnum Hydraulic Roller Camshaft and Lifter Kit Ford 289-302 1963-95 Retro-Fit Lift: .544"/.544"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 289-302ci 1963-1995Retro-Fit Non-EFI
- Magnum Hydraulic Roller Camshaft and Lifter Kit
- Lift: .544"/.544"
- Duration: 290°/290°
- Lobe Separation Angle: 110°
- RPM Range: 3000-6500
- For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Street/strip only, 4 speed and 4.10 or lower gear. 9:1 compression, aftermarket intake, headers and 2500+ converter.
Ford 289-302 1963-95 Retro-Fit
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.1
Package Width10.4
Package Length25.4
Weight14.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind Number290HR
Exh. Duration Advertised (Deg)290
Locks IncludedNo
Engine Make/SizeFord 221-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)230
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,000-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)290
Lobe Separation (Deg)110
Rpm Range3000-6500
Lifter StyleHydraulic roller
Advertised Duration290 int./290 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.544 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration290
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration290
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL31-452-8
Package Qty1
Package TypeEA
