Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL33-246-4

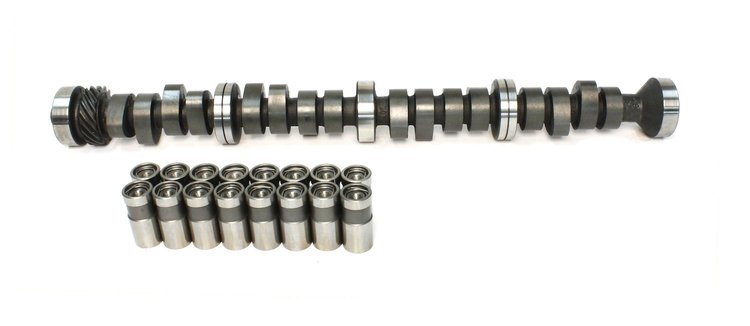

Comp Cams 'Magnum' Mechanical Flat Tappet Camshafts
$45695
3 left in stock
Ships Today
Lowest Price GuaranteeFord 352-428 c.i. 8 CYL. 1963-1976
- Magnum 294S Mechanical Flat Tappet Camshaft & Lifter Kit
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford, FE, 352, 428, Super Cobra Jet, SCJ, Cobra Jet, Mustang, Mach 1, Shelby, 332, 361, 390, 406, 410, 427, 428, Truck, F100, F150, Ford Truck
Good for street/strip cars. Use 10:1+ compression, low gears, 3000+ stall or 4 speed. Very rough idle.
Lift: .605"/.605"
Duration: 294°/294°
Lobe Separation Angle: 110°
RPM Range: 2500-6500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.1
Package Width5.5
Package Length25.2
Weight15.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleMechanical flat tappet
Grind NumberFB 294S-10
Exh. Duration Advertised (Deg)294
Locks IncludedNo
Engine Make/SizeFord 352-428
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.605
Int. Duration @ .050 In. (Deg)248
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.022 in (0.559 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.605 in (15.367 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)106
Rpm Range2500-6500
Lifter StyleMechanical flat tappet
Advertised Duration294 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.605
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.605 int./0.605 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.605 in (15.367 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift248
Exhaust Duration At 050 Inch Lift248
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration294
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift248 int./248 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL33-246-4
Package Qty1
Package TypeEA
