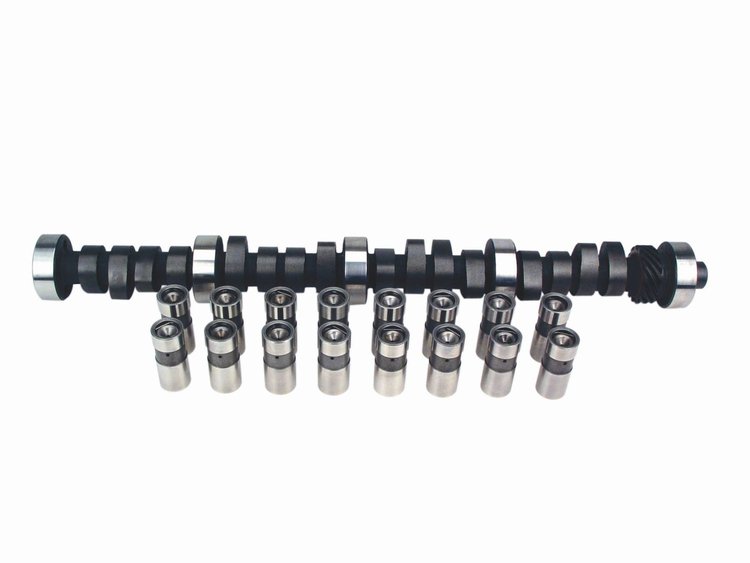

Xtreme Energy 256H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .477''/.484''
Duration: 256°/262°
RPM Range: 1000-5200


*Note: Firing Order 1-3-7-2-6-5-4-8

**Note: Many 1985-87 302ci engines, all 1988-97 302ci passenger car engines, all 1996-00 302ci truck engines, all 1985-95 302ci H.O. engines, and all 1994-97 351ci 'Windsor' engines are equipped with hydraulic roller camshafts and lifters. Conventional hydraulic, mechanical, or roller lifters can be easily installed in these engines, providing the appropriate kit components are used.

Strong torque through low-end and mid-range, good idle.

Operating Range:	1000-5200 RPM
Duration Advertised:	256° Intake / 262° Exhaust
Duration @ .050' Lift:	212° Intake / 218° Exhaust
Valve Lift w/1.6 Rockers:	.477' Intake / .484' Exhaust
Lobe Separation Angle:	110°

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
