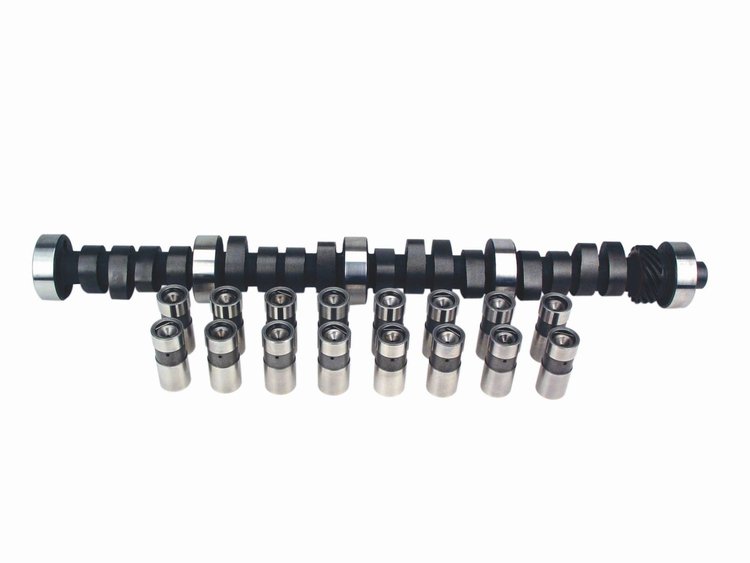

Xtreme 4x4 X4270H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .512''/.531''
Duration: 270°/278°
Lobe Separation Angle: 111°
RPM Range: 1600-5800


*Note: Firing Order 1-3-7-2-6-5-4-8

Good torque and throttle response, needs intake, headers, 2500 stall converter and lower gears.

Operating Range:	1600-5800 RPM
Duration Advertised:	270° Intake / 278° Exhaust
Duration @ .050' Lift:	226° Intake / 234° Exhaust
Valve Lift w/1.6 Rockers:	.512' Intake / .531' Exhaust
Lobe Separation Angle:	111°

Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150


Good torque and throttle response, needs intake and headers, lower gears and 2500+ stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
