Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL35-254-4

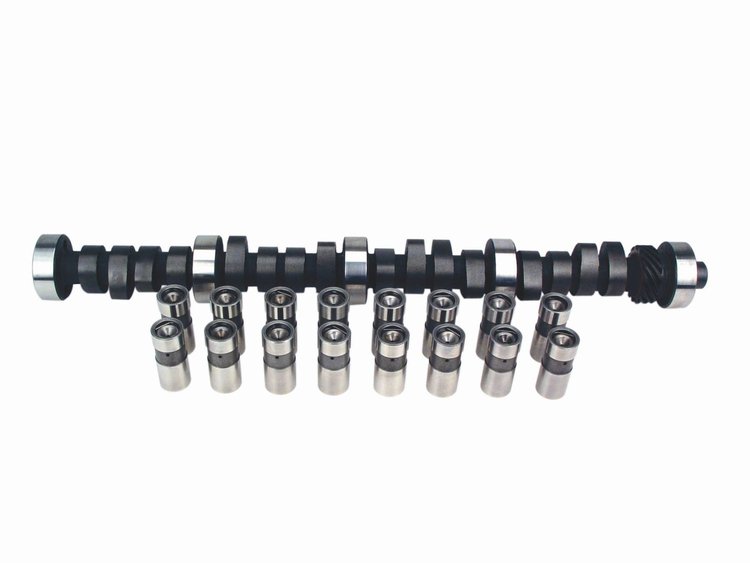

Xtreme Energy 294H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift: .554" /.558" Duration: 294°/306° RPM Range: 2800-7000
$39795
Ships on 10/23/2026
Lowest Price GuaranteeFord 351W 8 cyl. 1969-1996
- Xtreme Energy 294H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .554''/.558''
Duration: 294°/306°
RPM Range: 2800-7000
*Note: Firing Order 1-3-7-2-6-5-4-8
Pro Street/Bracket Race, good intake, headers, gears, 3300+ stall converter.
| Operating Range: | 2800-7000 RPM |
| Duration Advertised: | 294° Intake / 306° Exhaust |
| Duration @ .050' Lift: | 250° Intake / 256° Exhaust |
| Valve Lift w/1.6 Rockers: | .554' Intake / .558' Exhaust |
| Lobe Separation Angle: | 110° |
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Pro Street/bracket, good intake, headers, gear, 3300+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.3
Package Width5.7
Package Length25.4
Weight14.12 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)256
Cam StyleHydraulic flat tappet
Grind NumberFW XE294H-10
Exh. Duration Advertised (Deg)306
Locks IncludedNo
Engine Make/SizeFord 5.8L/351W
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.554
Int. Duration @ .050 In. (Deg)250
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,800-7,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.554 in (14.072 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2800-7000
Lifter StyleHydraulic flat tappet
Advertised Duration294 int./306 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.558
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.554 int./0.558 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.558 in (14.173 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift250
Exhaust Duration At 050 Inch Lift256
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration306
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift250 int./256 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL35-254-4
Package Qty1
Package TypeEA
