Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 351W 8 cyl. 1969-1996For engines NOT originally equipped with a hydraulic roller camshaft.

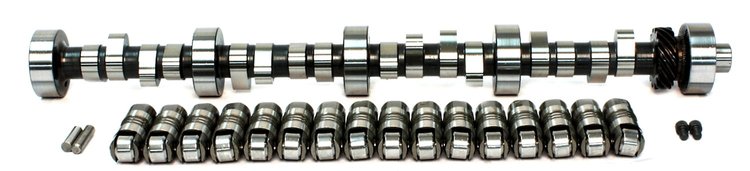

- Xtreme Energy XR264RF-HR Retro-Fit Hydraulic Roller Camshaft & Lifter Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Mild performance applications, good low end and mid-range, good idle.
Lift: .513"/.513"
Duration: 264°/270°
Lobe Separation Angle: 110°
RPM Range: 1200-5200
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width5.5
Package Length25.5
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic roller tappet
Grind NumberXR264RF-HR
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeFord 5.8L/351W
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.513
Int. Duration @ .050 In. (Deg)212
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,200-5,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.513 in (13.03 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)264
Lobe Separation (Deg)110
Rpm Range1200-5200
Lifter StyleHydraulic roller
Advertised Duration264 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.513
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.513 int./0.513 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.513 in (13.03 mm)
Advertised Intake Duration264
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift218
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift212 int./218 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL35-413-8
Package Qty1
Package TypeEA
