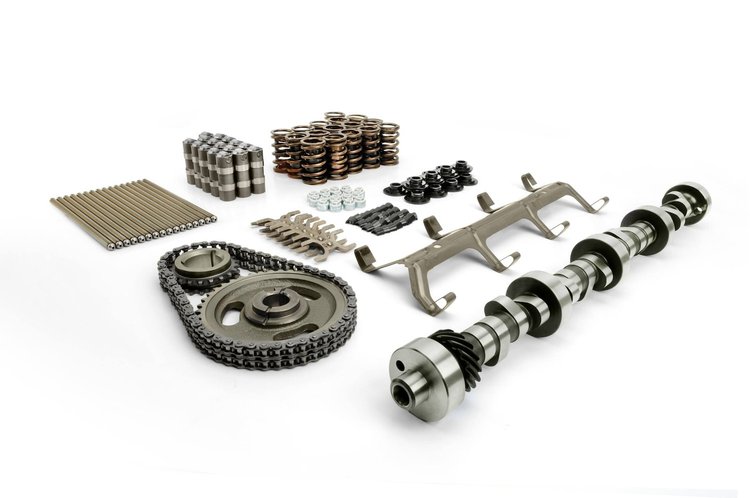

Comp Cams 'Xtreme Energy' Hydraulic Roller Camshafts

Product Discontinued

COMP CAMSPART NUMBER: 249-K35-421-8

Comp Cams 'Xtreme Energy' Hydraulic Roller Camshafts

Name: Comp Cams 'Xtreme Energy' Hydraulic Roller Camshafts
Brand: COMP CAMS
SKU: 249-K35-421-8
Price: 1275.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 351W 8 cyl. 1969-1996

For engines NOT originally equipped with a hydraulic roller camshaft.

Lift:

Duration:

Lobe Separation Angle:

RPM Range:

Produces Better Throttle Response
Produces Top Engine Horsepower
Delivers Increased Engine Vacuum
1 Year Limited Warranty
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150

Good mid-range performance, 3.23+ gears, stock converter or 1800+ stall. Noticeable idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.8

Package Width10.7

Package Length25.3

Weight26.3 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)224

Cam StyleHydraulic roller tappet

Grind NumberFW XR270RF-HR10

Exh. Duration Advertised (Deg)276

Locks IncludedYes

Engine Make/SizeFord 351W

Retainers IncludedYes

Intake Valve Lift With Factory Rocker Arm Ratio (I0.513

Int. Duration @ .050 In. (Deg)218

Assembly Lubricant IncludedNo

Basic Operating Rpm Range1,500-5,500

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.513 in (13.03 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)270

Lobe Separation (Deg)110

Rpm Range1500-5500

Lifter StyleHydraulic roller

Advertised Duration270 int./276 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.513

Valve Springs IncludedYes

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.513 int./0.513 exh.

QuantitySold as a kit

Valve Stem Seals IncludedYes

Exhaust Valve Lift0.513 in (13.03 mm)

Advertised Intake Duration270

Outside Diameter Of Outer Spring1.43 in (36.3 mm)

Intake Duration At 050 Inch Lift218

Exhaust Duration At 050 Inch Lift224

Timing Chain StyleDouble non-roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration276

Lifter TypeHydraulic Roller

Part FitmentSemi Universal

Duration At 050 Inch Lift218 int./224 exh.

Valve Springs RequiredNo

Lifters IncludedYes

Vendor Part NumberK35-421-8

Package Qty1

Package TypeEA
