Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Pontiac 265-455ci 8 cyl. 1955-1981

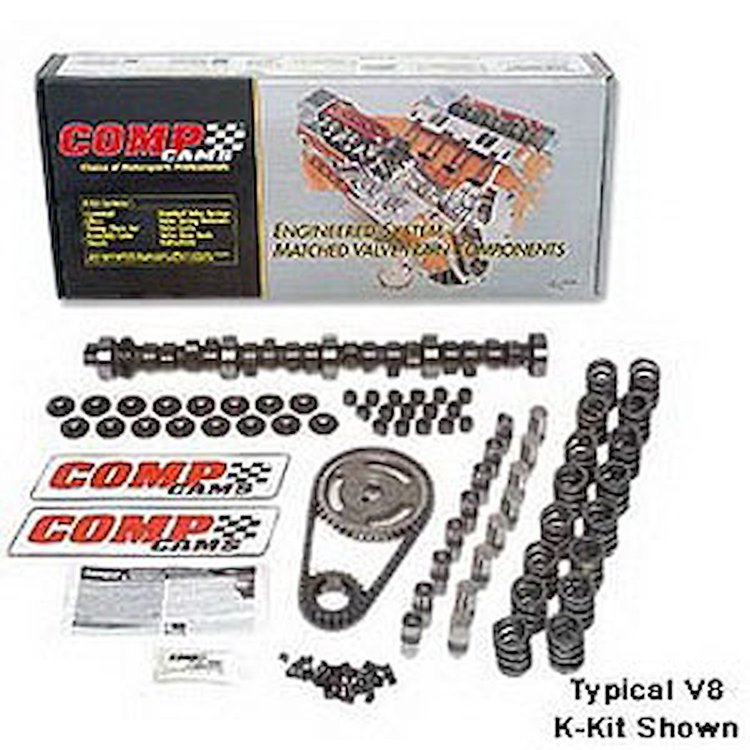

- Xtreme Energy Retro-Fit XR288HR Hydraulic Roller Camshaft Complete Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Lift: .520"/.540"
Duration: 288°/294°
Lobe Separation Angle: 110°
RPM Range: 2200-6000
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight26.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)242
Cam StyleHydraulic roller tappet
Grind NumberXR288HR-10
Exh. Duration Advertised (Deg)294
Locks IncludedYes
Engine Make/SizePontiac 265-455
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.52
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,200-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.52 in (13.208 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)110
Rpm Range2200-6000
Lifter StyleHydraulic roller
Advertised Duration288 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.54
Valve Springs IncludedYes
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.520 int./0.540 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.54 in (13.716 mm)
Advertised Intake Duration288
Outside Diameter Of Outer Spring1.437 in (36.5 mm)
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift242
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration294
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift236 int./242 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK51-433-9
Package Qty1
Package TypeEA
