Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK01-405-8

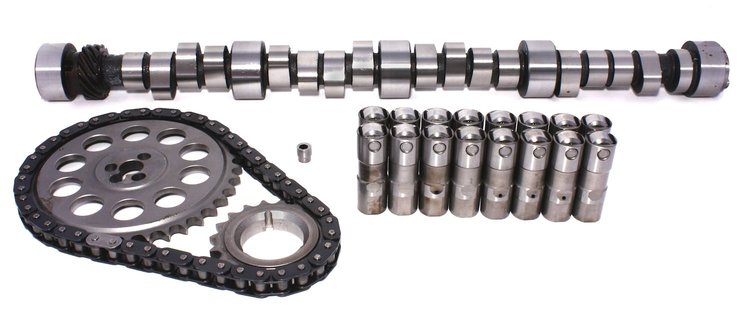

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$1,13195
Ships on 10/19/2026
Lowest Price GuaranteeChevrolet Gen VI Big Block 454ci & 502 c.i. 8 CYL. 1996-1999
- Xtreme Energy XR252HR Hydraulic Roller Camshaft Small Kit
- Very strong low speed torque with excellent mileage
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Very strong low speed torque with excellent mileage.
Lift: .510"/.510"
Duration: 252/258
Lobe Separation Angle: 110°
RPM Range: 600-4600
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight21.63 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)206
Cam StyleHydraulic roller tappet
Grind NumberXR252HR
Exh. Duration Advertised (Deg)258
Locks IncludedNo
Engine Make/SizeChevy Gen VI 454
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.51
Int. Duration @ .050 In. (Deg)200
Assembly Lubricant IncludedNo
Basic Operating Rpm Range600-4,600
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.51 in (12.954 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)252
Lobe Separation (Deg)110
Rpm Range600-4600
Lifter StyleHydraulic roller
Advertised Duration252 int./258 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.510 int./0.510 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration252
Intake Duration At 050 Inch Lift200
Exhaust Duration At 050 Inch Lift206
Timing Chain StyleSingle roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration258
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift200 int./206 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK01-405-8
Package Qty1
Package TypeEA
