Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK01-456-8

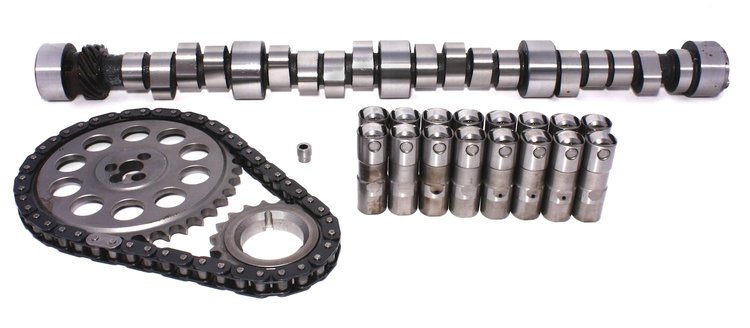

Xtreme Marine XM296HR Hydraulic Roller Camshaft Small Kit Lift: .566"/.566" Duration: 296°/302° RPM Range: 2800-6200
$1,02595
Ships on 09/16/2026
Lowest Price GuaranteeChevrolet Gen VI 454 & 502 c.i. 8 CYL. 1996-1999
- Xtreme Marine XM296HR Hydraulic Roller Camshaft Small Kit
- Good for jet boat with A or B impeller in Bracket Racing or performance use
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Good for jet boat with A or B impeller in bracket racing or performance use.
Lift: .566"/.566"
Duration: 296°/302°
RPM Range: 2800-6200
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.25
Package Length25.5
Weight22.0 PG
Part CategoryPerformance Parts
UsageMarine
Intake Valve Lift0.566 in (14.376 mm)
Int. Duration Advertised (Deg)296
Exh. Duration @ .050 In. (Deg)248
Rpm Range2800-6200
Lifter TypeHydraulic Roller
Exh. Duration Advertised (Deg)302
Part FitmentSemi Universal
Engine Make/SizeChevy Gen VI 454
Int. Duration @ .050 In. (Deg)242
Exhaust Valve Lift0.566 in (14.376 mm)
Vendor Part NumberSK01-456-8
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
![159 Engine Break-In Oil Additive [12-Ounce]](https://www.jegs.com/images/mini_200/200/249/249-159.jpg)
Some parts are not legal for use in California or other states with similar laws / regulations
