Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK10-210-4

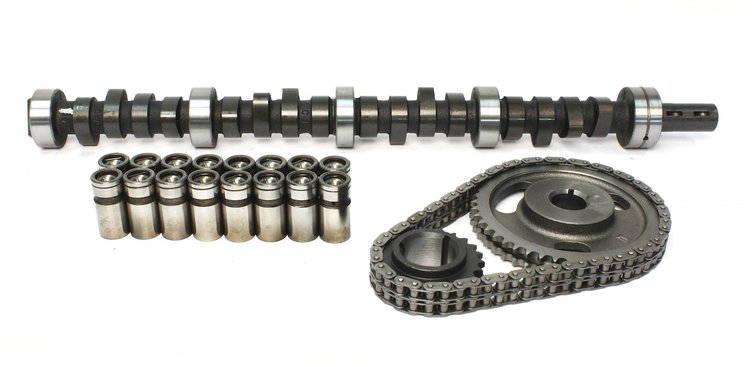

Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .518" /.518" Duration: 292°/292° RPM Range: 2500-6500
$46195
Ships on Oct 27, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
American Motors 290-401ci 1966-1991
- Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit
- Street / Strip cam for 360 and up
- Use 10:1 compression with 3000+converter and low gears
- Very rough idle
Installation Note: Stock springs cannot be used.
AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin
Street/strip cam for 360 and up. Use 10:1 compression with 3000+ converter and low gears. Very rough idle.
Lift: .518''/.518"
Duration: 292°/292°
RPM Range: 2500-6500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.4
Package Length25.4
Weight20.62 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberA 292H-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeAMC 290-401
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.518
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.518 in (13.157 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.518
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.518 int./0.518 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.518 in (13.157 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK10-210-4
Package Qty1
Package TypeEA
