Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

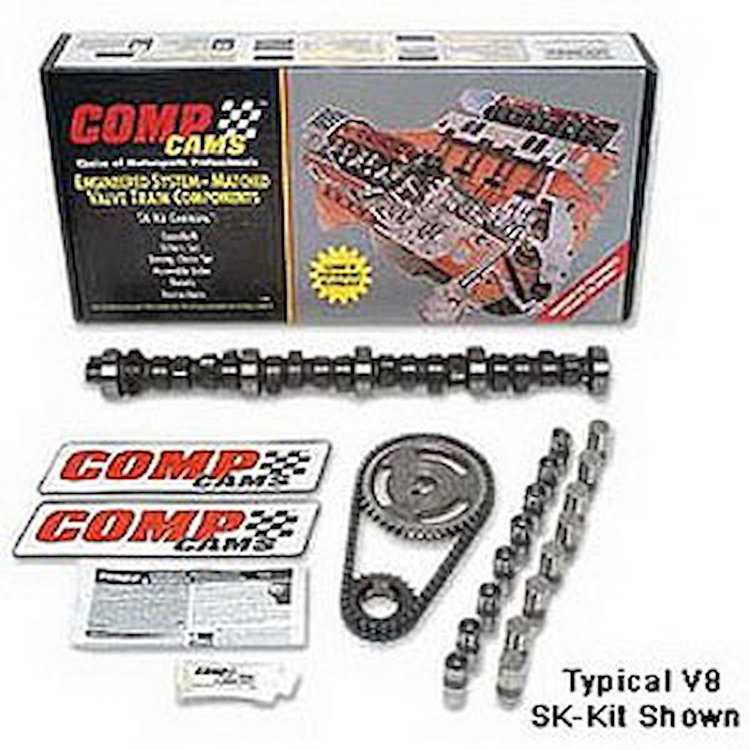

Chevy Big Block 396-454 c.i. 8 cyl. 1965-1996
- Dual Energy Hydraulic Flat Tappet Camshaft Small Kit
- High performance
- Superior high end power
- Works with stock converter
- Choppy idle
Installation note: Stock springs cannot be used.
Chevy Big Block 396-454ci 1965-96
Lift: .507"/.531"
Duration: 275°/283°
Lobe Separation Angle: 110°
RPM Range: 2000-6000
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight22.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)229
Cam StyleHydraulic flat tappet
Grind Number275DEH
Exh. Duration Advertised (Deg)283
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-454)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.507
Int. Duration @ .050 In. (Deg)219
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.507 in (12.878 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)275
Lobe Separation (Deg)110
Rpm Range2000-6000
Lifter StyleHydraulic flat tappet
Advertised Duration275 int./283 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.531
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.507 int./0.531 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.531 in (13.487 mm)
Advertised Intake Duration275
Intake Duration At 050 Inch Lift219
Exhaust Duration At 050 Inch Lift229
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration283
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift219 int./229 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK11-209-3
Package Qty1
Package TypeEA
