Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK11-214-4

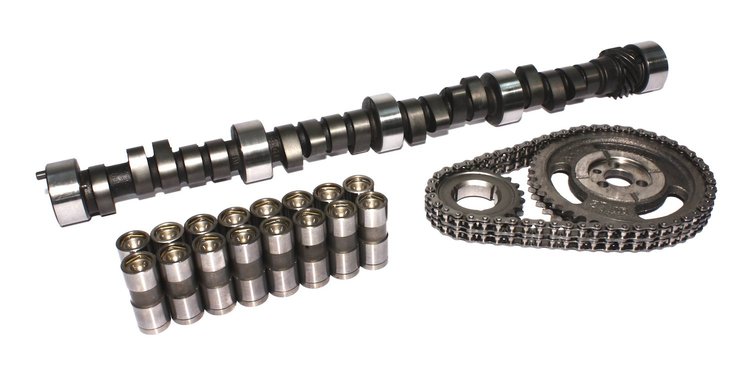

Magnum 305H Hydraulic Flat Tappet Camshaft Small Kit Lift: .575" /.575" Duration: 305°/305° RPM Range: 3000-6800
$46195
Ships on Oct 27, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
Chevy 396-454ci Big Block 1965-96
- Magnum 305H Hydraulic Flat Tappet Camshaft Small Kit
- Limited street use or Bracket Racing
- 10.5:1 compression, 3500+ stall or 4 speed
- 4.10 or lower
- Radical Idle
Installation note: Stock springs cannot be used
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Limited street use or bracket racing. 10.5:1+ compression, 3500+ stall or 4 speed. 4.10 or lower gears. Radical Idle.
Lift: .575''/.575"
Duration: 305°/305°
RPM Range: 3000-6800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight22.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)253
Cam StyleHydraulic flat tappet
Grind NumberCB 305H-10
Exh. Duration Advertised (Deg)305
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-454)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.575
Int. Duration @ .050 In. (Deg)253
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-6,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.575 in (14.605 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)305
Lobe Separation (Deg)110
Rpm Range3000-6800
Lifter StyleHydraulic flat tappet
Advertised Duration305 int./305 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.575
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.575 int./0.575 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.575 in (14.605 mm)
Advertised Intake Duration305
Intake Duration At 050 Inch Lift253
Exhaust Duration At 050 Inch Lift253
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration305
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift253 int./253 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK11-214-4
Package Qty1
Package TypeEA
