Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK11-232-3

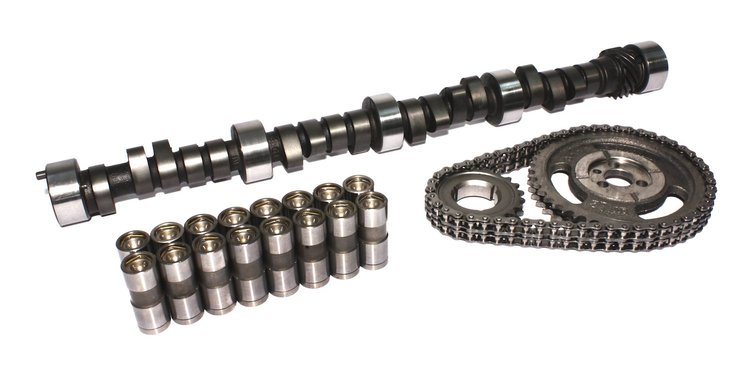

Comp Cams Xtreme Marine Hydraulic Flat Tappet Camshafts
$47895
Ships Tomorrow
Lowest Price GuaranteeChevy Big Block 396-454ci 1965-96
- Xtreme Marine Hyd. Flat Tappet Cam Small Kit
Chevy Big Block 396-454ci 1965-96
Lift: .505"/.515"
Duration: 262°/268°
Lobe Separation Angle: 110°
RPM Range: 1000-5000
*Note: In order to use these camshafts in 1965-66 396/427ci blocks, it is necessary to machine a 3/16' wide x 7/64' deep groove in the rear main journal of the cam to allow oil flow to the top of the engine.
Biggest for inboard/Outboard good for ski, economy & performance.
| Operating Range: | 1000-5000 RPM |
| Duration Advertised: | 262° Intake / 268° Exhaust |
| Duration @ .050' Lift: | 218° Intake / 224° Exhaust |
| Valve Lift w/1.7 Rockers: | .505' Intake / .515' Exhaust |
| Lobe Separation Angle: | 112° |
Chevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Biggest for inboard/outboard, good for ski, economy and performance.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.1
Package Width10.5
Package Length25.2
Weight19.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberXM262H
Exh. Duration Advertised (Deg)268
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-454)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.505
Int. Duration @ .050 In. (Deg)218
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,000-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.505 in (12.827 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)112
Rpm Range1000-5000
Lifter StyleHydraulic flat tappet
Advertised Duration262 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.515
Valve Springs IncludedNo
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.505 int./0.515 exh.
Camshaft Gear Attachment3-bolt
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.515 in (13.081 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration268
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberSK11-232-3
Package Qty1
Package TypeEA
