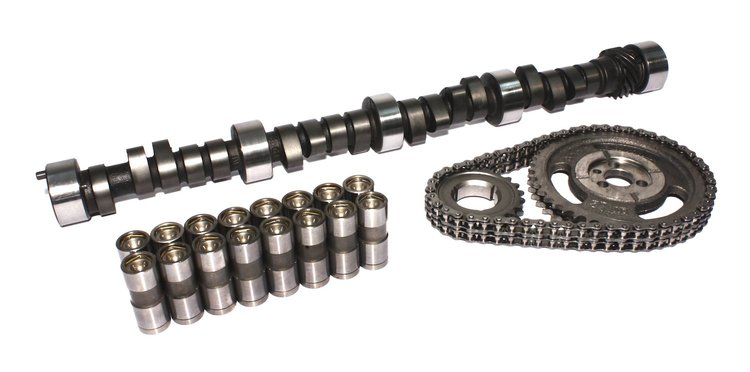

Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .501" /.501" Duration: 292°/292° RPM Range: 2500-6500

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-SK12-213-3

Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .501" /.501" Duration: 292°/292° RPM Range: 2500-6500

Name: Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .501" /.501" Duration: 292°/292° RPM Range: 2500-6500
Brand: COMP CAMS
SKU: 249-SK12-213-3
Price: 446.95 USD
Availability: InStock

^$446⁹⁵

1 left in stock

Ships Today

Lowest Price Guarantee

Chevy 262-400ci Small Block 1955-98

Lift:

Duration:

RPM Range:

Street / Strip special, 3000 stall, headers, gears, 9.5:1 CR.
Very rough idle.
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10

Great for street machines. Needs 2500+stall, headers and gears. Rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.0

Package Width10.5

Package Length25.5

Weight16.59 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)244

Cam StyleHydraulic flat tappet

Grind NumberCS 292H-10

Exh. Duration Advertised (Deg)292

Locks IncludedNo

Engine Make/SizeChevy Small Block (262-400)

Retainers IncludedNo

Intake Valve Lift With Factory Rocker Arm Ratio (I0.501

Int. Duration @ .050 In. (Deg)244

Assembly Lubricant IncludedYes

Basic Operating Rpm Range2,500-6,500

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.501 in (12.725 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)292

Lobe Separation (Deg)110

Rpm Range2500-6500

Lifter StyleHydraulic flat tappet

Advertised Duration292 int./292 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.501

Valve Springs IncludedNo

UsageStreet/Strip

Valve Lift With Factory Rocker Arm Ratio0.501 int./0.501 exh.

QuantitySold as a kit

Valve Stem Seals IncludedNo

Exhaust Valve Lift0.501 in (12.725 mm)

Advertised Intake Duration292

Intake Duration At 050 Inch Lift244

Exhaust Duration At 050 Inch Lift244

Timing Chain StyleDouble roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration292

Lifter TypeHydraulic Flat Tappet

Duration At 050 Inch Lift244 int./244 exh.

Valve Springs RequiredYes

Lifters IncludedYes

Vendor Part NumberSK12-213-3

Package Qty1

Package TypeEA
