Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK12-254-3

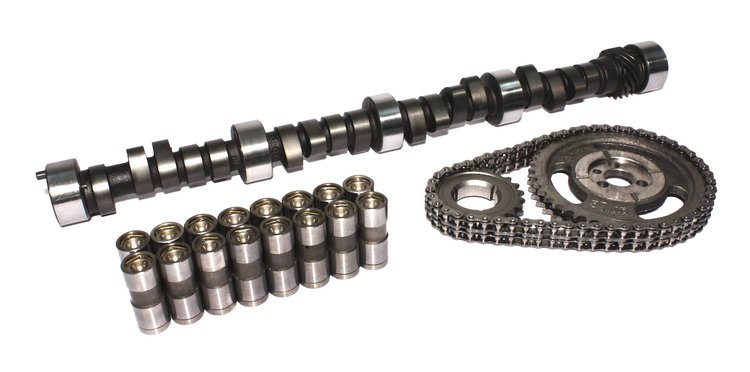

Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Small Kit Lift: .519"/.523" Duration: 294°/306° RPM Range: 2800-7000
$44695
Ships on 10/23/2026
Lowest Price GuaranteeChevy 262-400ci Small Block 1955-98
- Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Small Kit
Lift: .519"/.523''
Duration: 294°/306°
RPM Range: 2800-7000
Pro Street / Bracket, needs good intake, headers, gear & 3300+ stall
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Pro Street/bracket, needs good intake, headers, gear and 3300+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.1
Package Width10.2
Package Length25.5
Weight17.39 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)256
Cam StyleHydraulic flat tappet
Grind NumberCS XE294H-10
Exh. Duration Advertised (Deg)306
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.519
Int. Duration @ .050 In. (Deg)250
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,800-7,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.519 in (13.183 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2800-7000
Lifter StyleHydraulic flat tappet
Advertised Duration294 int./306 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.523
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.519 int./0.523 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.523 in (13.284 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift250
Exhaust Duration At 050 Inch Lift256
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration306
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift250 int./256 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK12-254-3
Package Qty1
Package TypeEA
