Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK20-226-4
Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Small Kit Lift: .519" /.524" Duration: 294°/306° RPM Range: 3000-7000
$45495
Ships on 10/23/2026
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2003

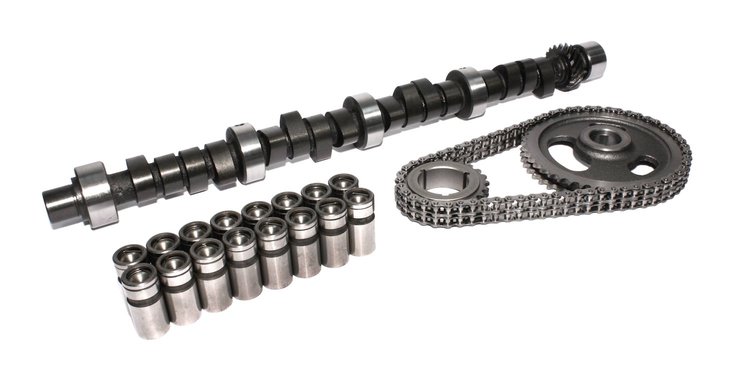

- Xtreme Energy 294H Hydraulic Flat Tappet Camshaft Small Kit
Lift: .519''/.524"
Duration: 294°/306°
RPM Range: 3000-7000
Pro Street / Bracket, goodintake, headers, gear, 3500 stall
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Pro Street/bracket, good intake, headers, gear, 3500+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight21.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)256
Cam StyleHydraulic flat tappet
Grind NumberXE294H
Exh. Duration Advertised (Deg)306
Locks IncludedNo
Engine Make/SizeMopar 273-360
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.519
Int. Duration @ .050 In. (Deg)250
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-7,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.519 in (13.183 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range3000-7000
Lifter StyleHydraulic flat tappet
Advertised Duration294 int./306 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.524
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.519 int./0.524 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.524 in (13.31 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift250
Exhaust Duration At 050 Inch Lift256
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration306
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift250 int./256 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK20-226-4
Package Qty1
Package TypeEA
