Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK20-243-4

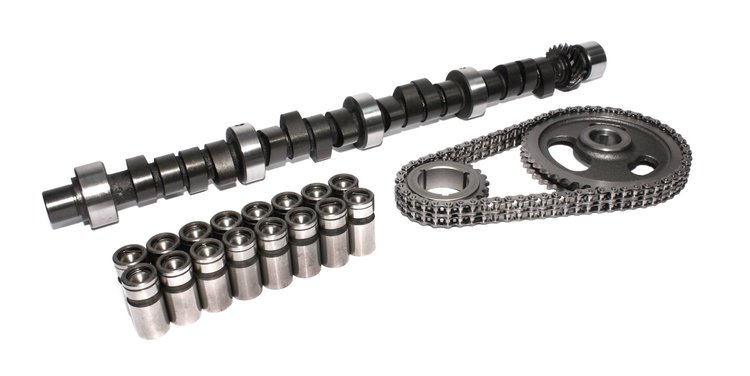

Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .501"/.501" Duration: 292°/292° RPM Range: 3000-6500
$46195
Ships on 10/26/2026
Lowest Price GuaranteeChrysler 273-360ci Small Block 1964-2000
- Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit
- Serious Street / Strip effort
- 9.5:1 to 10.5:1 comp.
- Aftermarket manifold, headers & 3.91 gear
- 3000-3500 stall in automatic cars
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Serious street/strip effort. 9.5:1 to 10.5:1 compression. Aftermarket manifold, headers and 3.91 gear. 3000-3500 stall in automatic cars.
Lift: .501"/.501"
Duration: 292°/292°
RPM Range: 3000-6500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight19.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberCRS 292H-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeMopar 273-360
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.501
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.501 in (12.725 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range3000-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.501
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.501 int./0.501 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.501 in (12.725 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK20-243-4
Package Qty1
Package TypeEA
