Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK20-244-4

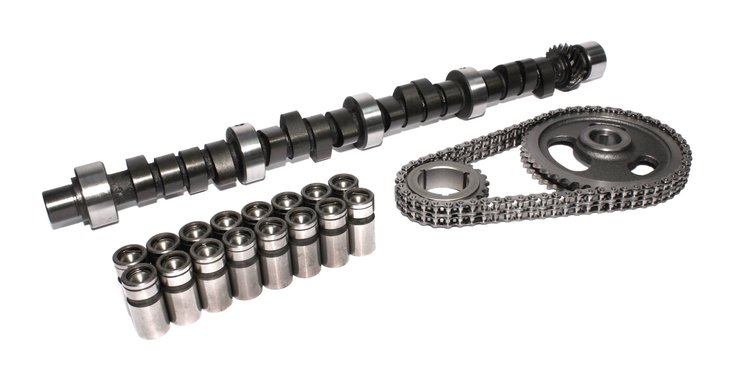

Magnum 305H Hydraulic Flat Tappet Camshaft Small Kit Lift: .525"/.525" Duration: 305°/305° RPM Range: 3500-6800
$46195
Ships on Oct 28, 2026
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
Chrysler 273-360ci Small Block 1964-2000
- Magnum 305H Hydraulic Flat Tappet Camshaft Small Kit
- Pro Street / all out Bracket Racing
- 3500 to 4000 stall, 10:1 to 11:1 compression
- Aftermarket manifold with 750 CFM carb.
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Pro Street/all out bracket racing. 3500 to 4000 stall, 10:1 to 11:1 compression. Aftermarket manifold with 750 CFM carb.
Lift: .525"/.525"
Duration: 305°/305°
RPM Range: 3500-6800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight19.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)253
Cam StyleHydraulic flat tappet
Grind Number305H
Exh. Duration Advertised (Deg)305
Locks IncludedNo
Engine Make/SizeMopar 273-360
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Int. Duration @ .050 In. (Deg)253
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,500-6,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.525 in (13.335 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)305
Lobe Separation (Deg)110
Rpm Range3500-6800
Lifter StyleHydraulic flat tappet
Advertised Duration305 int./305 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.525 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.525 in (13.335 mm)
Advertised Intake Duration305
Intake Duration At 050 Inch Lift253
Exhaust Duration At 050 Inch Lift253
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration305
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift253 int./253 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK20-244-4
Package Qty1
Package TypeEA
