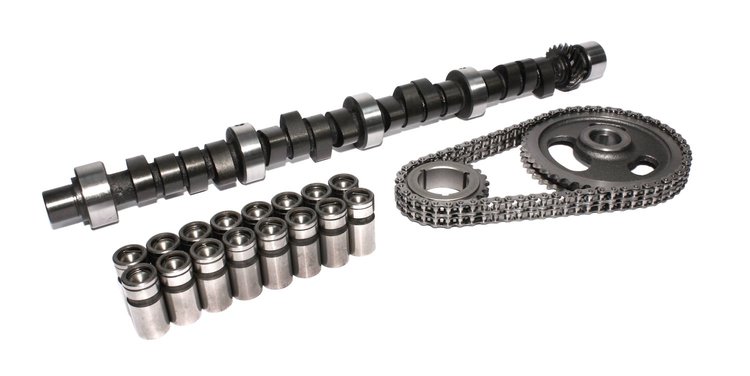

Magnum 306S Mechanical Flat Tappet Camshaft Small Kit
Lift: .555"/.555"
Duration: 306°/306°
Lobe Seperation Angle: 110°
RPM Range: 4000-7000

Max effort Bracket Racing or Pro Street. 10:1 to 11:1 compression with 4000 to 4500 stall and 4.30 to 4.88 gear.



Operating Range:	4000-7000 RPM
Duration Advertised:	306° Intake / 306° Exhaust
Duration @ .050' Lift:	260° Intake / 260° Exhaust
Valve Lift:	.555' Intake / .555' Exhaust
Lobe Separation Angle:	110°

273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA


Max effort bracket racing or Pro Street. 10:1-11:1 compression with 4000 to 4500 stall and 4.30-4.88 gear.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
