Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

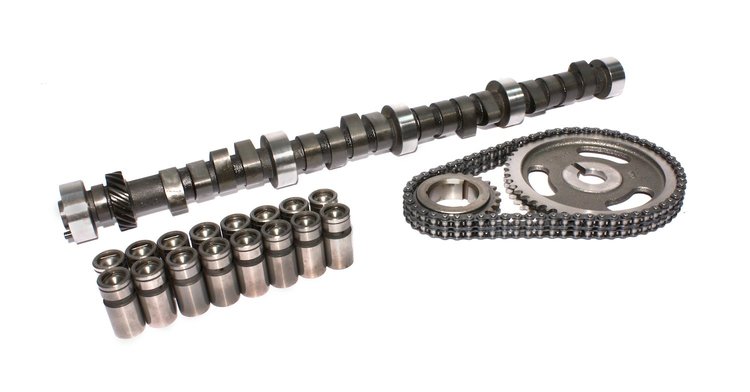

Chrysler 383-440 C.I. 8 CYL. 1959-1980
- Magnum 294S Mechanical Flat Tappat Camshaft Small Kit
Lift: .525"/.525"
Duration: 294°/294°
Lobe Separation Angle: 110°
RPM Range: 3000-6200
Max street 383. 3500 converter. 10:1 comp. 750 CFM up & headers. 3000 stall for 440, 800 CFM 3.91-4.30 gear.
| Operating Range: | 3000-6200 RPM |
| Duration Advertised: | 294° Intake / 294° Exhaust |
| Duration @ .050' Lift: | 248° Intake / 248° Exhaust |
| Valve Lift: | .525' Intake / .525' Exhaust |
| Lobe Separation Angle: | 110° |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Max street 383. 3500 converter. 10:1 compression. 750+ CFM and headers. 3000+ stall for 440, 800 CFM, 3.91-4.30 gear.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight20.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleMechanical flat tappet
Grind Number294S
Exh. Duration Advertised (Deg)306
Locks IncludedNo
Engine Make/SizeMopar 383-440
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Int. Duration @ .050 In. (Deg)260
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-6,200
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.022 in (0.559 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.555 in (14.097 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)306
Lobe Separation (Deg)110
Rpm Range3000-6200
Lifter StyleMechanical flat tappet
Advertised Duration294 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.525 exh.
Camshaft Gear Attachment1-bolt
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.555 in (14.097 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift250
Exhaust Duration At 050 Inch Lift250
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration294
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift250 int./250 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK21-248-4
Package Qty1
Package TypeEA
