Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK33-240-4

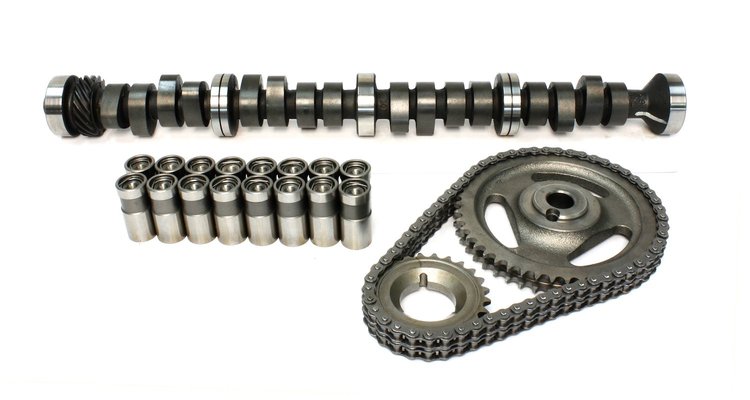

Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .560" /.560" Duration: 292°/292° RPM Range: 2500-6500
$49395
Ships on 10/26/2026
Lowest Price GuaranteeFord 352-428 c.i. 8 CYL. 1963-1976
- Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit
Lift: .560''/.560"
Duration: 292°/292°
RPM Range: 2500-6500
Street/Strip use 9.5:1+ compression with headers, intake, low gears and 3000 stall converter. Racy idle.
| Operating Range: | 2500-6500 RPM |
| Duration Advertised: | 292° Intake / 292° Exhaust |
| Duration @ .050' Lift: | 244° Intake / 244° Exhaust |
| Valve Lift w/1.73 Rockers: | .560' Intake / .560' Exhaust |
| Lobe Separation Angle: | 110° |
Ford, FE, 352, 428, Super Cobra Jet, SCJ, Cobra Jet, Mustang, Mach 1, Shelby, 332, 361, 390, 406, 410, 427, 428, Truck, F100, F150, Ford Truck
Street/strip, use 9.5:1+ compression with headers, intake, low gears and 3000+ stall. Racy idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberFB 292H-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeFord 352-428
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.560 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.56 in (14.224 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK33-240-4
Package Qty1
Package TypeEA
