Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK33-241-4

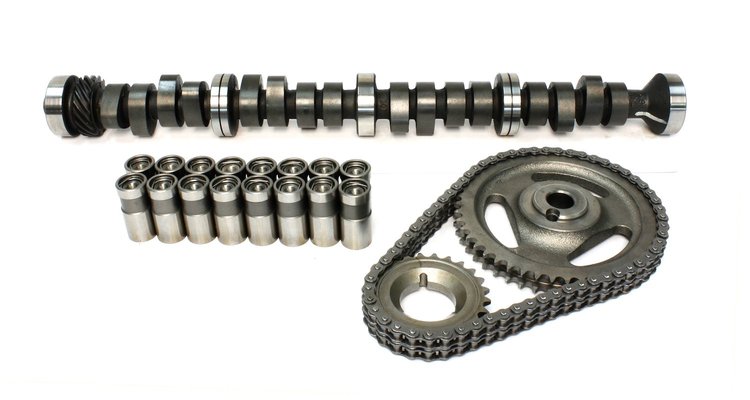

Magnum 305H Hydraulic Flat Tappet Camshaft Small Kit Lift: .585" /.585" Duration: 305°/305° RPM Range: 3000-6800
$46895
Ships on 10/23/2026
Lowest Price GuaranteeFord 352-428 c.i. 8 CYL. 1963-1976
- Magnum 305H Hydraulic Flat Tappet Camshaft Small Kit
- Ford 352-428 c.i. 8 CYL. 1963-1976
- Hydraulic-Best camshaft for Pro Street or Bracket Racing
- 3500+ stall
- 10.5:1 and up
- Radical race idle
Ford, FE, 352, 428, Super Cobra Jet, SCJ, Cobra Jet, Mustang, Mach 1, Shelby, 332, 361, 390, 406, 410, 427, 428, Truck, F100, F150, Ford Truck
Best camshaft for Pro Street or bracket racing. 3500+ stall, 10.5:1+ compression. Radical race idle.
Lift: .585''/.585"
Duration: 305°/305°
RPM Range: 3000-6800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)253
Cam StyleHydraulic flat tappet
Grind Number305H
Exh. Duration Advertised (Deg)305
Locks IncludedNo
Engine Make/SizeFord 352-428
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.585
Int. Duration @ .050 In. (Deg)253
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-6,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.585 in (14.859 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)305
Lobe Separation (Deg)110
Rpm Range3000-6800
Lifter StyleHydraulic flat tappet
Advertised Duration305 int./305 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.585
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.585 int./0.585 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.585 in (14.859 mm)
Advertised Intake Duration305
Intake Duration At 050 Inch Lift253
Exhaust Duration At 050 Inch Lift253
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration305
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift253 int./253 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK33-241-4
Package Qty1
Package TypeEA
