Product Discontinued
COMP CAMSPART NUMBER: 249-SK33-781-9

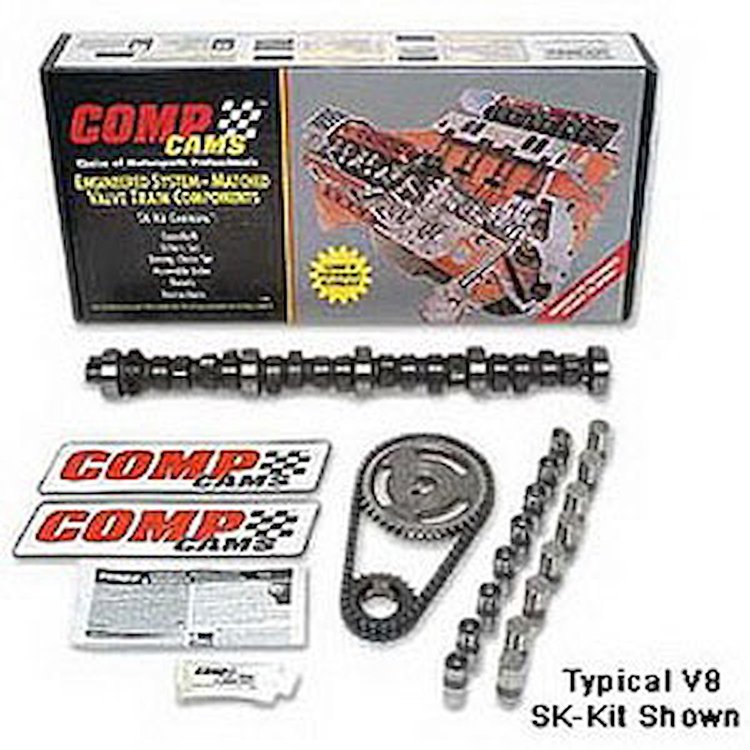

Magnum Mechanical Roller Cam Small Kit Ford 352-428ci 1963-1976 Lift: .645"/.645"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 352-428ci 1963-1976
- Magnum Mechanical Roller Cam Small Kit
- Lift: .645"/.645"
- Duration: 292°/292°
- Lobe Separation Angle: 110°
- RPM Range: 2200-6500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford 352-428ci 1963-1976
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.25
Package Length25.5
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleMechanical roller tappet
Grind NumberFB 288R-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeFord 352-428
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.645
Int. Duration @ .050 In. (Deg)248
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,200-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.02 in (0.508 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.645 in (16.383 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2200-6500
Lifter StyleMechanical roller
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.645
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.645 int./0.645 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.645 in (16.383 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift248
Exhaust Duration At 050 Inch Lift248
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeMechanical Roller
Duration At 050 Inch Lift248 int./248 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK33-781-9
Package Qty1
Package TypeEA
