Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK33-782-9

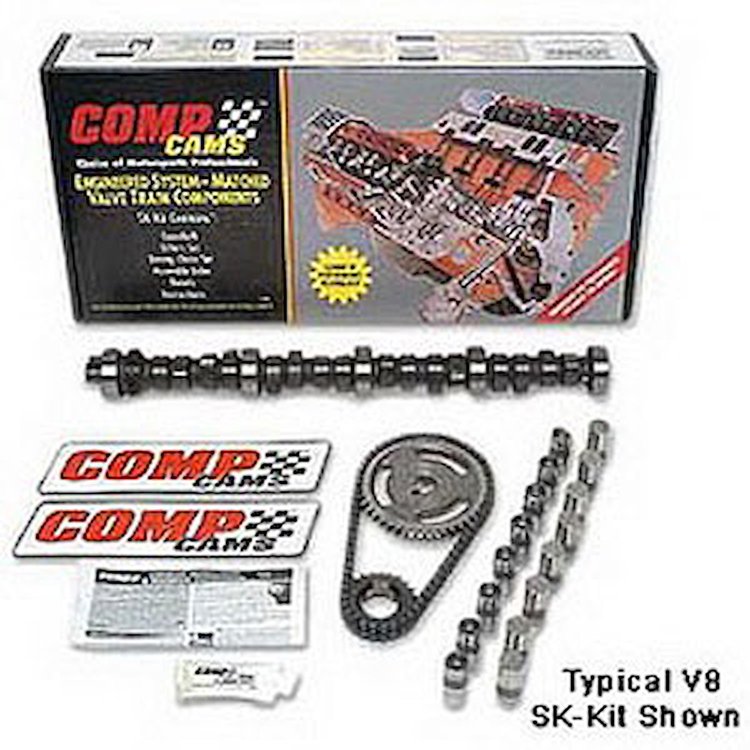

Magnum Mechanical Roller Cam Small Kit Ford 352-428ci 1963-1976 Lift: .674"/.674"
$1,08099
Ships on 09/16/2026
Lowest Price GuaranteeFord 352-428ci 1963-1976
- Magnum Mechanical Roller Cam Small Kit
- Lift: .674"/.674"
- Duration: 312°/312°
- Lobe Separation Angle: 110°
- RPM Range: 3000-7000
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
FE; 352; 361; 360; 390; 306; 410; 427; 427; Mustang; F100; Edsel; Fairlane; Torino; Cyclone GT; Comet; Mercury
Ford 352-428ci 1963-1976
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.25
Package Length25.5
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)262
Cam StyleMechanical roller tappet
Grind NumberFB 308R-10
Exh. Duration Advertised (Deg)312
Locks IncludedNo
Engine Make/SizeFord 352-428
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.674
Int. Duration @ .050 In. (Deg)262
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,000-7,000
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.02 in (0.508 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.674 in (17.12 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)312
Lobe Separation (Deg)110
Rpm Range3000-7000
Lifter StyleMechanical roller
Advertised Duration312 int./312 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.674
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.674 int./0.674 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.674 in (17.12 mm)
Advertised Intake Duration312
Intake Duration At 050 Inch Lift262
Exhaust Duration At 050 Inch Lift262
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration312
Lifter TypeMechanical Roller
Duration At 050 Inch Lift262 int./262 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK33-782-9
Package Qty1
Package TypeEA
