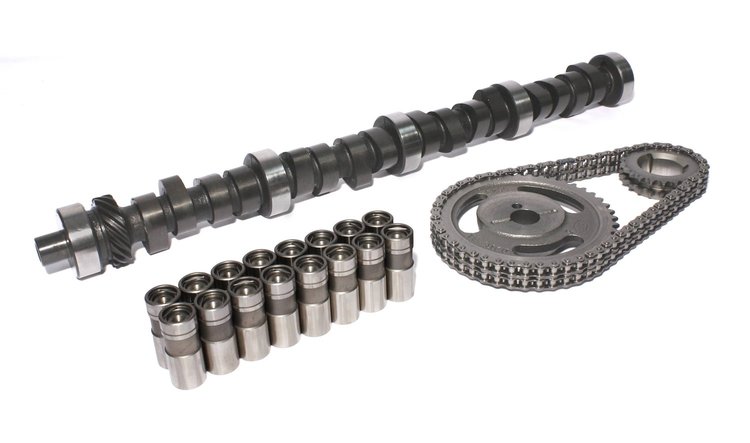

'Xtreme 4x4' Hydraulic Flat Tappet Camshaft

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-SK34-239-4

'Xtreme 4x4' Hydraulic Flat Tappet Camshaft

Name: 'Xtreme 4x4' Hydraulic Flat Tappet Camshaft
Brand: COMP CAMS
SKU: 249-SK34-239-4
Price: 503.95 USD
Availability: InStock

^$503⁹⁵

Ships on 10/19/2026

Lowest Price Guarantee

Ford 429, 460 c.i. 8 CYL. 1968-1994

Lift:

Duration:

Lobe Separation Angle:

RPM Range:

Operating Range:	1600-5800 RPM
Duration Advertised:	270° Intake / 278° Exhaust
Duration @ .050' Lift:	226° Intake / 234° Exhaust
Valve Lift w/1.73 Rockers:	.554' Intake / .574' Exhaust
Lobe Separation Angle:	111°

Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.0

Package Width10.5

Package Length26.0

Weight23.5 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)234

Cam StyleHydraulic flat tappet

Grind NumberFF X4 270H-11

Exh. Duration Advertised (Deg)278

Locks IncludedNo

Engine Make/SizeFord 429-460

Retainers IncludedNo

Intake Valve Lift With Factory Rocker Arm Ratio (I0.554

Int. Duration @ .050 In. (Deg)226

Assembly Lubricant IncludedYes

Basic Operating Rpm Range1,600-5,800

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.554 in (14.072 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)270

Lobe Separation (Deg)111

Rpm Range1600-5800

Lifter StyleHydraulic flat tappet

Advertised Duration270 int./278 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.574

Valve Springs IncludedNo

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.554 int./0.574 exh.

QuantitySold as a kit

Valve Stem Seals IncludedNo

Exhaust Valve Lift0.474 in (12.04 mm)

Advertised Intake Duration270

Intake Duration At 050 Inch Lift226

Exhaust Duration At 050 Inch Lift234

Timing Chain StyleDouble non-roller

Timing Chain And Gears IncludedYes

Advertised Exhaust Duration278

Lifter TypeHydraulic Flat Tappet

Duration At 050 Inch Lift226 int./234 exh.

Valve Springs RequiredYes

Lifters IncludedYes

Vendor Part NumberSK34-239-4

Package Qty1

Package TypeEA
