Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-302-8

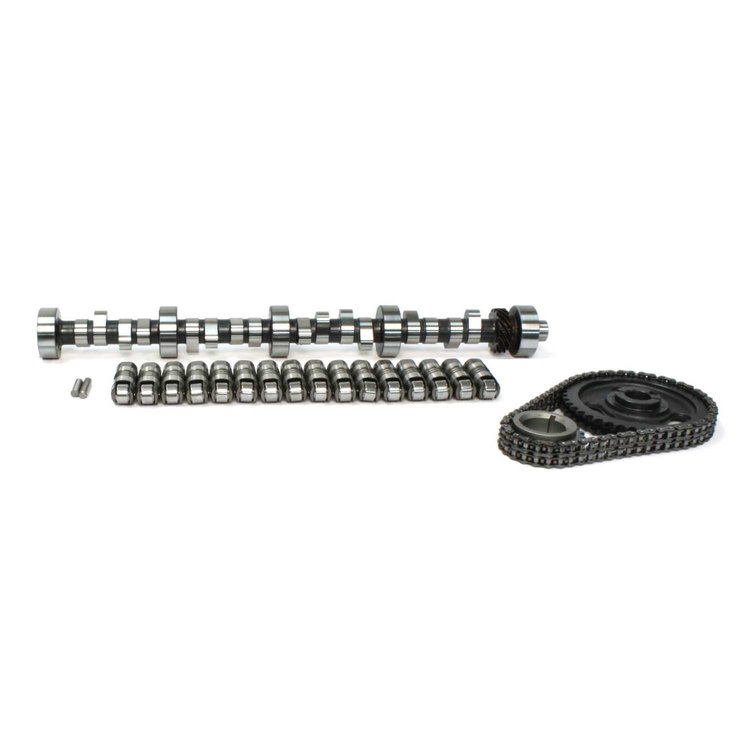

Magnum Hydraulic Roller Camshaft Small Kit Ford 5.0L 1985-95 Factory Roller Lift: .512"/.533"
$90195
Ships on 09/16/2026
Lowest Price GuaranteeFord 5.0L 1985-95 Factory Roller
- Magnum Hydraulic Roller Camshaft Small Kit
- Lift: .512"/.533"
- Duration: 281°/284°
- Lobe Separation Angle: 112°
- RPM Range: 2000-5500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Mass air, 5 speed or 2500+ stall, heads, intake, headers, 3.55-3.73 gears.
Ford 5.0L 1985-95 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind Number281HR
Exh. Duration Advertised (Deg)284
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.512
Int. Duration @ .050 In. (Deg)220
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,000-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.512 in (13.005 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)281
Lobe Separation (Deg)112
Rpm Range2000-5500
Lifter StyleHydraulic roller
Advertised Duration281 int./284 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.512 int./0.533 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.533 in (13.538 mm)
Advertised Intake Duration281
Intake Duration At 050 Inch Lift220
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration284
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift220 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-302-8
Package Qty1
Package TypeEA
